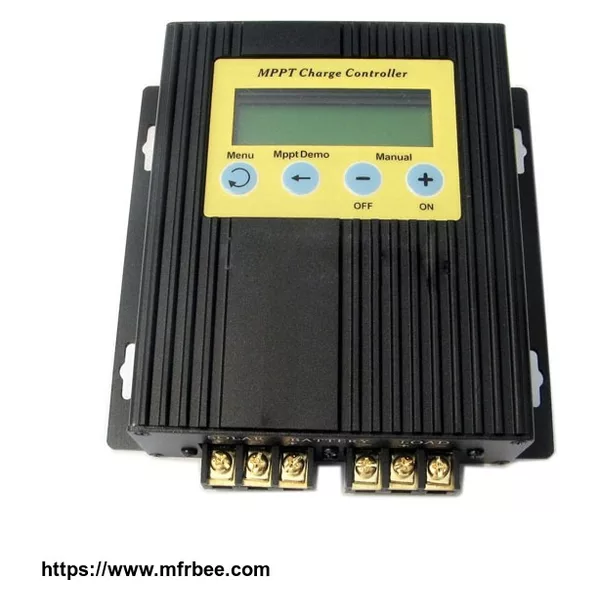

20A MPPT Solar Charge Controller 12V/24V with LCD Display
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Features
1. High-speed MPPT high technology: MPPT with LCD display, efficiency > 99%, Employs a DC converting circuit,conversion efficiency > 96%.
2. More selections for your need: five output modes: Manual, Standard, Timer, Light sensor, the Light sensor on + Timer off.
3. Advanced electronic protection: overcharge, over discharge, overload and short circuit protection.
4. 3-stage charging algorithm, impulse, bulk and float.
5. Power meter function: LCD display shows the battery voltage, charging current, charging power, output status.
6. Built-in timer, suitable for a periodic discharge system such as solar street lights, solar pumps etc.
Specification
| Rated system voltage | 12V/24V DC |
| Max open circuit voltage of solar panel | 15-50V DC |
| Max output current | 20A |
| Max discharge current | 20A |
| Over-discharge voltage | 10.2-12.5V(+/- 0.2) |
| Restart voltage | 10.2-13.5V(+/- 0.2) |
| Constant voltage (Over charge )voltage | 13-15.5V(+/- 0.2) |
| Float voltage | 12.5-14.5V(+/- 0.2) |
| Converter type | Buck |
| Converter efficiency | >96% |
| Max increase efficiency | >43% |
| Tracking efficiency | >98% |
| Precision of clock | +/-50S/Month |
| Operating temperature | -20 to +50 degree C |
| Protect class | IP22 |
| Size | 140mm*147mm*42mm(5.53*5.81*1.66In) |
| Weight | 550g(1.21lbs) |
Application
These solar charge controllers are suitable for a periodic discharge system such as solar street lights, solar pumps etc.
