Features

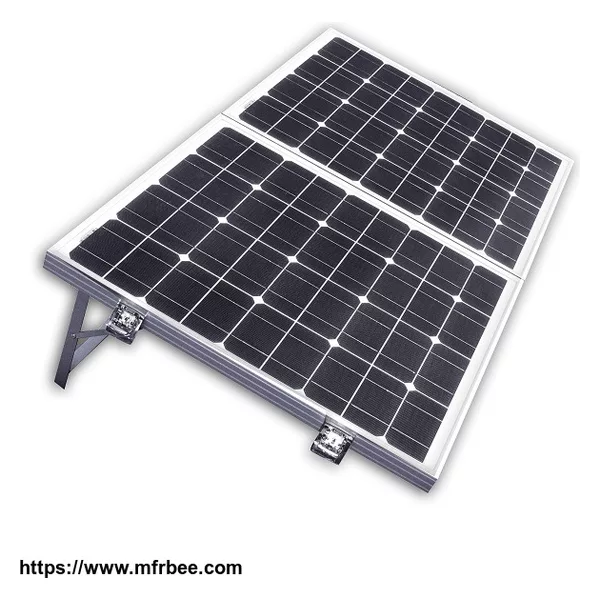

1. Easy Operation: open up the folding solar panel, face the sun, battery clips allows for simple connection to the battery.
2. Pre-installed controller and Pre-wired for 12V battery charging, you don’t have to add extra controller.
3. With handle, convenient to carry.
4. Waterproof IP-65 Rated Junction Box: Advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets).
5. Resistance to salt corrosion and humidity.
6. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).
Specification
Related power | 100W |
Vop | 17.9V |
Working current (Iop) | 5.59A |
Output Tolerance | ±3% |
Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
Temperate coefficient of Voc | – (0.38 +/-0.01 )%/ ℃ |
Temperate coefficient of power Voc | -0.47%/℃ |
Temperature range | -40℃ to +80℃ |
Frame and leg | Heavy duty aluminum |
SLA Battery Voltage | 12V |
Dimensions (L x W x H)mm | 690*510*73mm(27.3*20.16*2.9in) |
Weight (kgs) | 11.9kgs(26.25lbs) |
Package Included 1 pc 100W Monocrystalline Solar Panel 1 pc 20A CMG Solar Charge Controller ECO-WORTHY100W PWM Off-Grid RV Kit This 100W Mono solar panel with its high power output and the robust design the right solution for a stand-alone system. Even on cloudy days, the solar ...
