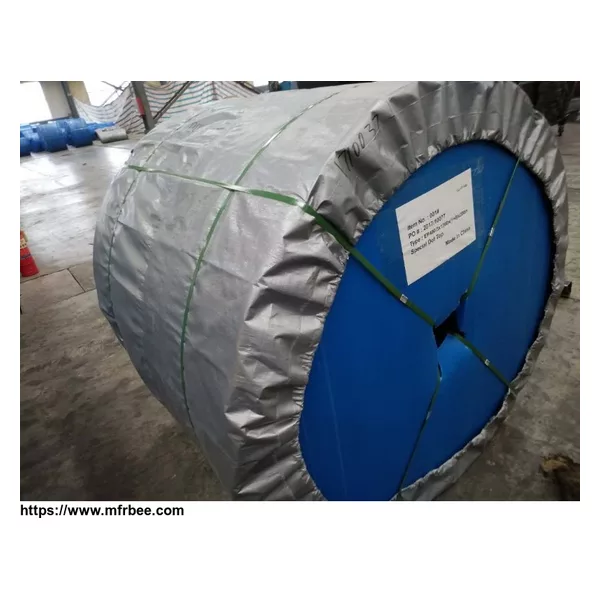

The general fabric conveyor belt is made of EP or NN and finished through the processes of mixing, calendaring, firming and vulcanizing.
Specification of fabric belt
Belt Type | Fabric Type | Single Fabric Strength(N/mm) | Single Fabric Thickness(mm) |
Cover Thickness (mm) |
Ply | Width Range | Length(m)/Roll | |
Top Rubber | Bottom Rubber | |||||||
NN Belt | NN100 | 100 | 0.7 | 3 | 1.5 | 2-10 | 300-2800 | 20-400 |
NN125 | 125 | 0.7 | ||||||
NN150 | 150 | 0.75 | ||||||
NN200 | 200 | 0.9 | ||||||
NN250 | 250 | 1.15 | ||||||
NN300 | 300 | 1.25 | ||||||
NN400 | 400 | 1.5 | ||||||
EP Belt | EP100 | 100 | 0.75 | 4.5 | 3 | 2-8 | 300-2800 | 20-400 |
EP125 | 125 | 0.75 | ||||||
EP150 | 150 | 0.85 | ||||||
EP175 | 175 | 0.85 | ||||||
EP200 | 200 | 1 | ||||||
EP250 | 250 | 1.2 | ||||||
EP300 | 300 | 1.35 | ||||||
EP350 | 350 | 1.5 | ||||||
EP400 | 400 | 1.65 | ||||||
EP500 | 500 | 2 |
Fabric Conveyor Belts are named according to different cover grade:
Normal Standard, Oil resistant, Acid
resistant, Heat resistant, High temperature resistant, Flame resistant, Cold resistant and Abrasion resistant, etc.
They are widely used in mining,
harbour, coal, metallurgy chemical etc.
Please contact me if you need
