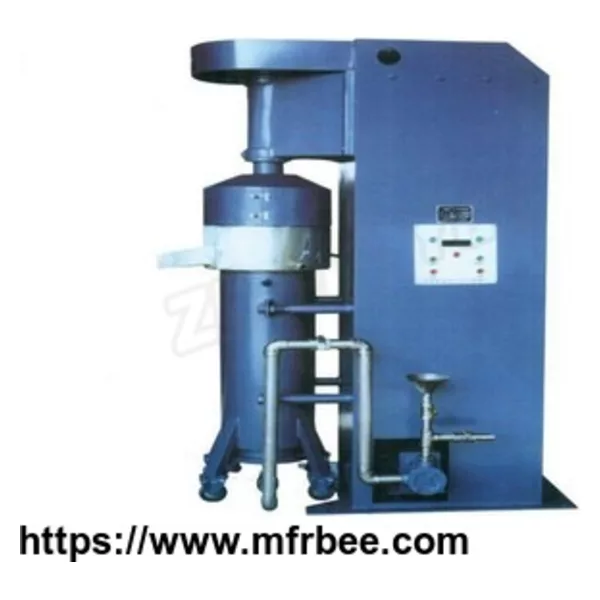

The feeding pump is installed inside the machine body, when put the materials into the bottom of valve, the dispersion axis drives the dispersed plate to rotate so that the grinding balls can move quickly .under the pressure of the balls, the matrerials can be sheared and grind.
2.Features:
(1) The machine is easy to operate, clean and change the colour.
(2) According to User's requirements and the materials, the barrel and the dispersed plate can be made by carbon steel, stainless steel.
(3) The liner of the barrel can be made of high wear-resistant polyurethane material, so that it could provide a reliable guarantee for processing high purity materials.
Vertical Paint Sand Mill Machine is widely used to produce architectural coatings,alkyd resins, fuel, printing ink, pesticides, industrial coating paints, anti-corrosive primers, paints forroad marking, paper, leather, cosmetics and other chemical industries.
Modal | SK10 | SK20 | SK30 | SK40 | SK80 | SK120 |
Capacity (L) | 10 | 20 | 30 | 40 | 80 | 120 |
Main Motor Power(Kw) | 5.5 | 7.5 , 11 | 11 ,15 | 15, 18.5 | 22, 30 | 30 |
Pump Motor Power(Kw) | 1.5, 3 | 1.5, 3 | 1.5, 3 | 1.5, 3 | 1.5, 3 | 1.5, 3 |
Stirring Speed(r/min) | 1290 | 1290 | 1290 | 1025 | 830 | 700 |
feeding capacity (L/min) | 2-16 | |||||
viscosity of materials | <=2 | |||||
Weight (kg) | 600-2000 | |||||
Dimension(mm) | As Model |
