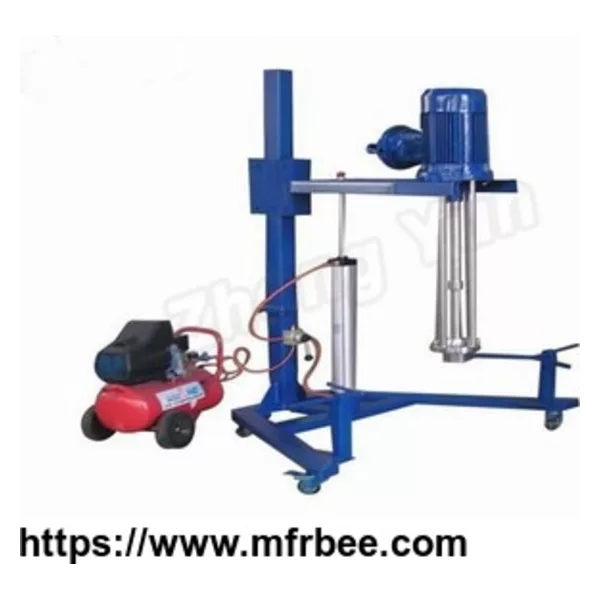

1)Compared with the ordinary high shear mulser, the movable emulsifiers working principles are basically the same.
2)The precise combination of rotor and stator produces a strong shear force to mix,crush and emulsify the materials.
3)But the pipeline emulsifiers has one or more sets of rotors and stators to improve the emulsifying effects.
4)Moreover,the device can continuously work(so it is also named the continuous mulser)by feeding at one end and discharging at the other,which will increase the production efficiency significantly.
5)The equipent prominent feature is that it does not use grinding media in the production process, and integrates shear, disperse,emulsify,homogenize,mix,and crush function all together.
Emulsifying Machine has advantages as followed:
large capacity, suitable for industrial on-line continuous production;
narrow particle size distribution, high uniformity;
low energy consumption, high efficiency;
low noise, smooth operation;
no quality difference between the batches;
no dead ends, 100% material dispersion rate.
It can be used for the continuous emulsion or dispersion of multi-phase liquid media, and the transport of low viscosity liquid media. Also,it is suitable for the continuous mixing of liquid-powder.It is widely used in daily chemical manufacturing, food, pharmaceutical, chemical, petroleum, coatings, nano-materials.
The working chamber has one group of stator and rotor,and the rotor rotates to produce a strong centrifugal force, which will sucks the materials into the working area, then all materials must go through shearing and be ejected from the working chamber.
Type | 405 | 410 | 420 | |
Power(Kw) | 4 | 7.5 | 15 | |
Rotation Speed(r/min) | 3000 | 3000 | 1500 | |
Output(m/h) | 5 | 7 | 9 | |
Feeding Mouth | DN40 | DN50 | DN80 | |
Discharging Mouth | DN32 | DN50 | DN65 | |
Weight(Kg) | 160 | 170 | 240 | |
Overall Dimension (mm) | L | 800 | 800 | 800 |
W | 460 | 500 | 600 | |
H | 1100 | 1100 | 1100 |
