Lubricant grease production line
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- discuss personally
Specifications
Lubricating oil production equipment

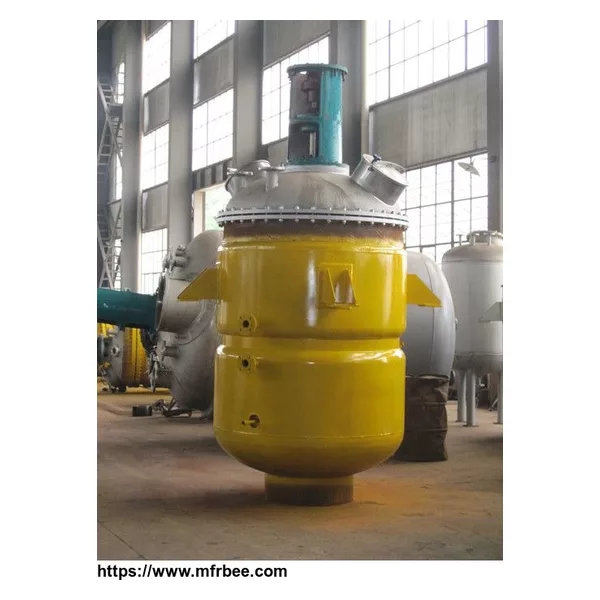

一, pressure to make the Fat kettle
It is mainly used to complete the saponification
reaction during the preparation of grease, and it can also be used in many tasks of petroleum, chemical industry and medicine.
Notable
features:
※ Planetary stirring, automatic scraping edge, stirring evenly, reaction thoroughly.
※ Circulating oil heating, high temperature,
energy saving, environmental protection, safety and other characteristics.
※ The use of advanced mechanical seal, high pressure, sealed reliable
leak-free.
Main technical parameters
|
Model |
Capacity L |
Inner pot diameter mm |
Jacket diameter mm |
Motor power Kw |
Output rotation speed r/min |
Net weight Kg |
| 1600L | 1600 | 1200 | 1300 | 11 15 | 42 | 3000 |
| 2500L | 2500 | 1400 | 1500 | 15 22 | 42 | 4120 |
二, the mixing kettle
It is mainly used to complete the harmonic reaction during the preparation of grease, and it can also be used in many tasks of
petroleum, chemical industry and medicine.
Notable features
※ Planetary stirring, automatic scraping edge, stirring evenly, reaction
thoroughly
※ Circulating oil heating, high temperature, energy saving, environmental protection, safety and other characteristics.
※
Packing seal, double feeding port, easy to operate
Main technical parameters
|
Model |
Capacity L |
Inner pot diameter mm |
Jacket diameter mm |
Motor power Kw |
Output rotation speed r/min |
Net weight Kg |
| 2500L | 2500 | 1400 | 1500 | 15 22 | 42 | 3600 |
| 4000L | 4000 | 1600 | 1700 | 18.5 30 | 42 | 5500 |
三. auxiliary equipment
Static shearing device, degassing tank, casing filter, quench mixer, homogenizer, distributor, etc.
