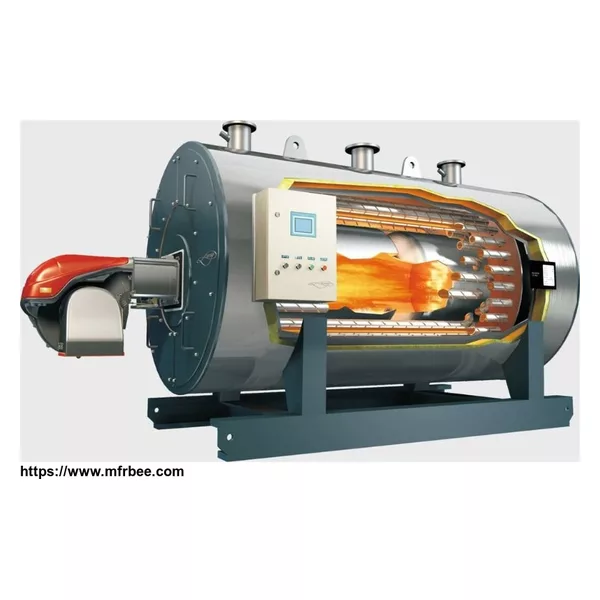

Organic heat carrier boiler

Organic heat carrier boiler
The organic heat carrier boiler refers to a new type of heat energy conversion equipment with high-temperature heat transfer oil ( also called hot coal and heat carrier ), so the organic heat carrier boiler is also called heat transfer oil boiler and usually uses \" MW\" ( MW ) to indicate the capacity of the boiler, and the old unit also uses \" 10MW / hour\" or \" 10kcal / hour\", that is, \" 104kcal / h\". The advantage of the organic heat carrier furnace ( also called heat conduction oil furnace ) lies in its \" high temperature and low pressure\", stable operation and wide application. Organic heat carrier furnaces are divided into liquid phase and gas phase, while organic heat carrier furnaces are mostly liquid phase ( gas phase furnaces are rarely used in China ).
Organic heat carrier boiler is a new type of special boiler with heat transfer liquid as heating medium. It has low pressure and high temperature working characteristics. With the development of industrial production and the progress of science and technology, the organic heat carrier furnace has been continuously developed and applied. Although the working pressure of the organic heat carrier furnace is relatively low, the temperature of the heat transfer fluid in the furnace is high, and most of them have the characteristics of flammability and explosion. Once leakage occurs in operation, it will cause accidents such as fire, explosion, and even cause casualties and property losses. Therefore, we must attach great importance to the safe operation and management of the organic heat carrier furnace.
Principle editing
Organic heat carrier boiler is a special once-through industrial furnace that uses coal, heavy oil, light oil, combustible gas and other combustible materials as fuel, heat transfer oil as heat carrier, uses circulating oil pump to force liquid phase circulation, transfers heat energy to heating equipment, and then returns to reheating. Heat transfer oil, also known as organic heat carrier or heat medium oil, has been used as intermediate heat transfer medium in industrial heat transfer process for more than 50 years.
heat conduction oil furnace\'s principle is that the furnace is closed-circuit circulation, and the temperature difference between the oil outlet temperature and the oil return temperature is only 20 - 30 degrees, that is, only the temperature difference of 20 - 30 degrees can reach the service temperature. The steam boiler adds cold water, turns the cold water into steam for heating, and the steam into 60 - 70 degree condensed water to be discharged. Therefore, it plays a role in saving energy and reducing consumption.
Classified editing
Organic heat carrier boiler can be divided into electric organic heat carrier boiler, coal-fired organic heat carrier boiler, oil-fired organic heat carrier boiler and gas-fired organic heat carrier boiler according to fuel
