Factory wholesales DC Current isolation amplifiers

Minimum Order
1
Place Of Origin
China
Packaging
N/A
Delivery
15 Days
Description

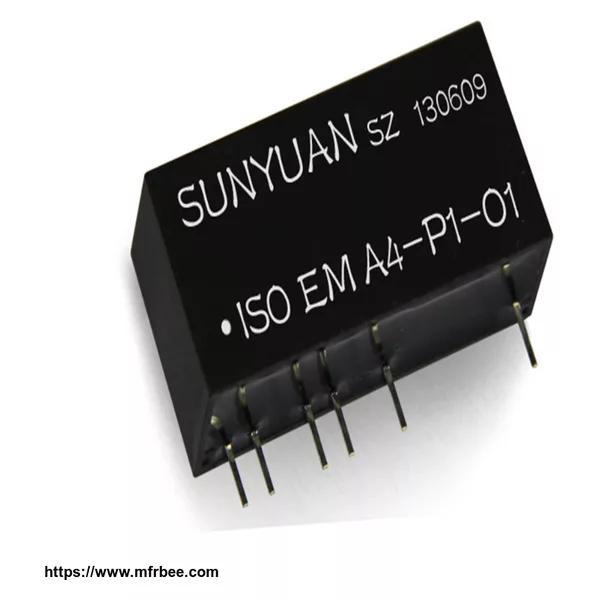

DC Current/Voltage Isolation (4-20mA/0-10mA/0-10V/0-5V/0-20mA) Transmitter/Converter
3KVDC Magneto-electric Isolation
ISOEM U/A-P-O Series
DC Current Voltage Isolation Signal Transmitter Features:
● Low cost,small size,SIP 12 anti- fire UL94V-0 package
● No external component,need not “ZERO”and “G.adj” adjustment.
● Three-port (power/input/output) isolation:3000VDC
● Assistant power:5VDC/12VDC/15VDC/24VDC
● 0-75mV/0-2.5V/0-5V/0-10V/0-±100mV/0-±5V/0-±10V voltage signal
or 0-10mA/0-2mA/4-20mA/0-±10mA/0-±20mA current signal isolation and transfer
● Industrial temperature range: -45~+85 ℃
● In EMC(electromagnetism disturb) circumstance, shield measure required.
DC Current Voltage Isolation Signal Transmitter Applications:
● DC current/voltage signal isolated/transfer/amplifier
● No distortion in long distance signal transmission
● Analog signal data acquisition
● 4-20mA(0-20mA)/0-5V signal isolation and transfer
● Equipment and sensor signal acquisition
● Signal transmit no-distortion
● Electric power,distant control,isolated safe bar
● 4-20mA sensor analog signal transmission
● Ground interference control
Application solutions:
The Universal Connection Solutions for Industrial Sensor and Instruments (ISO 4-20mA) Series
The External Protection of Isolation Amplifier Transmitter IC
DC Current Voltage Isolation Signal Transmitter Model Selection:
ISO EM U(A)□ -P□- O□
Magneto-electric isolation
Input Voltage/Current
U1:0-5V A1:0—1mA
U2:0-10V A2: 0—10mA
U3:0-75mV A3: 0—20mA
U4:0-2.5V A4: 4—20mA
U5:0-±5V A5:0—±1mA
U6:0-±10V A6: 0—±10mA
U7:0-±100mV A7: 0—±20mA
U8:Customized A8: Customized
Auxiliary Power
P1:DC24V P2:DC12V
P3:DC5V P4:DC15V P8:Customized
Output
O1: 4-20mA O2: 0-20mA O4: 0-5V O5: 0-10V
O6: 1-5V O7: 0-±5V O8: Customized O9: -20-+20mA O10:0-±10V
