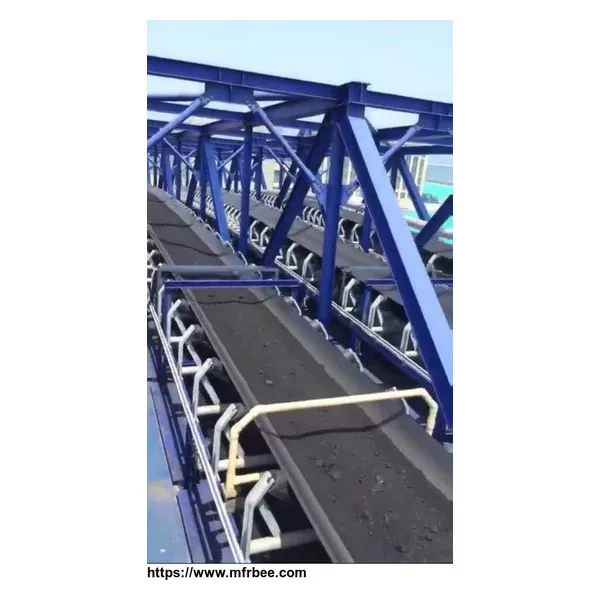

Description
On surface of the belt, there is chevron pattern higher than the belt body. Each kind of pattern includes of high medium and low.
Chevron conveyor belt is suitable for conveyor grain or power materials and can work with an obliquity less than 40 degrees.
Application
Chevron conveyor belts are used to convey wet and/or loose materials or bags up steep inclines.
The patterns prevent or reduce slide back and increase the amount of product moved by quick pick-up at the point of loading. They are used in quarries, sandpits, cement works, lime works, mobile crushers and screens, farming and salt mines, etc.
Type | M pa≥ | Elongation% | mm3 ≤ | Change Rate of tensile strength and elongation after aging |
% | ||||
H | 24 | 450 | 120 | -25~+25 |
D | 18 | 400 | 100 | -25~+25 |
L | 15 | 350 | 200 | -25~+25 |
Technical data
Advantages
1. Can carry bulk material at angles of 17~ 18 and bagged material at angles of 30~ 50.
2. Cleat angle and pitch are designed for smooth travel over return idlers.
3. Cleats and top cover rubber are mono block molding for strength. Types: Open V, Closed-V, L type, H type, Y type, A type and F type, etc. Notes: For other patterns we will design and manufacture as required.
Specification
1.Chevron conveyor belt: EP/NN80-630
2. Thickness: 3mm--50mm
3. Width: 400mm--2400mm
4. 15days 1x20ft
5. T/T
