2018 Hot SellingYQB-30 Self Rescuer Oxygen Filling Pump Machine
Product Quick Detail
- Displacement Under Suction Conditions
- 3L/Min
- Place Of Origin
- china
- FOB Price
- USD $2,000.00 / Piece
- Power
- 2.2kw
- Maximum Inflation Pressure
- 30mpa
- Minimum Order
- 1
- Primary Plunger Diameter
- 18mm
- Packaging
- carton boxes, plastic bags, wooden cases or as your requirement
- Delivery
- 5-10 working days
Specifications

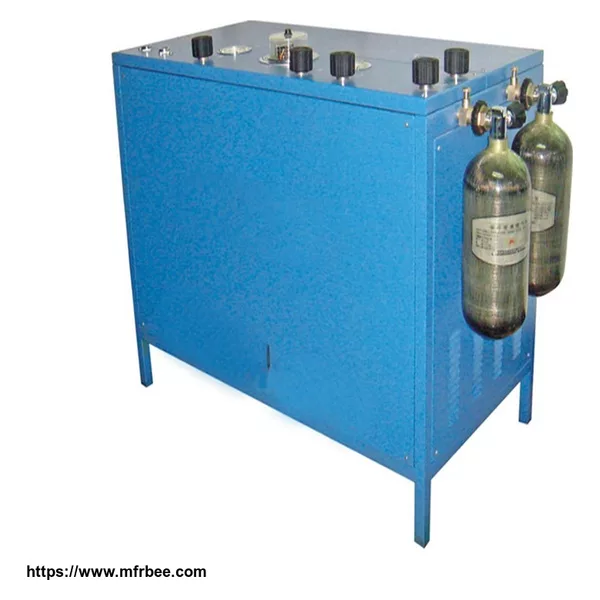

Introduction of2018 Hot SellingYQB-30Self Rescuer Oxygen Filling Pump Machine
Oxygen filling pump is designed for a variety of oxygen breathing apparatus, compressed oxygen self-rescuer and oxygen equipment needs filling high pressure gas transfer and filling design
of special equipment. It will boost the gas source gas bottle filled to the stingy bottle, so the gas pressure within the cylinder up to the required pressure. The products are mainly for filling
oxygen, but also for boosting filling carbon dioxide, nitrogen and other gases.
Product Feature:
1. Suitable for filling oxygen and
inflammable gases.
2. high charging efficiency.
3. Product rigorous structure, small size, light
weight.
4.The product is simple, easy maintenance, low cost.
Applied range:
Mine rescue, fire protection,
petroleum, chemical industry, metallurgy, medical, transportation, shipbuilding, defense
Parameter Of2018 Hot SellingYQB-30Self Rescuer Oxygen Filling Pump Machine
| Maximum Inflation Pressure | 30MPa |
| DisplacementUnderSuctionConditions | 3L/Min |
| Series | 2 |
| The maximum Compression Ratio | 8 |
| Crankshaft Rotation Number | 440N / Min |
| Primary Plunger Diameter | 18mm |
| Primary Plunger Diameter | 12mm |
| Three-Stage Motor Parameters | |
| Model | Y100L1-4 |
| power | 2.2KW |
| voltage | 380V AC |
| Dimensions | 860x565x640mm |
| Weight | 116Kg |
