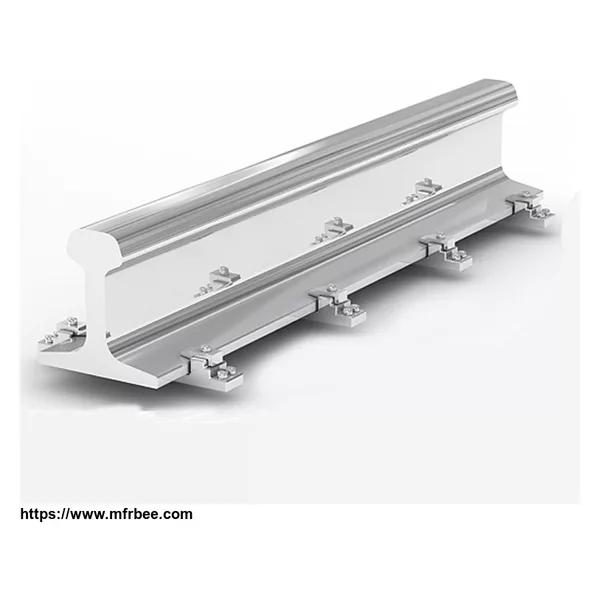

In Request Q235B Railway Track Light Steel Rail
Product Quick Detail
- FOB Price
- USD $10.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- carton boxes, plastic bags, wooden cases or as your requirement
- Delivery
- 15 Days
Specifications
china coal 0001
sales@chinacoalintl.com
+86-537-2350961
Introduction of In Request Q235B Railway Track Light Steel Rail
Normally, steel rail is devide into light rail ,heavy rail and crane rail
1)Light rails: 6kg/m,9kg/m,12kg/m,15kg/m,18kg/m,22kg/m, 24k/mg, 30kg/m
Material: Q235B / 50Q / 55Q
Length of each piece:
6m~12m
Executive standard: refer to GB11264-89
2)Heavy rails: 38kg/m, 43kg/m, 50kg/m, 60kg/m
Material: U71Mn / 50Mn / 44Mn
Length of each piece:
12m,12.5m
Executive standard: refer to GB2585-2007
3)Crane rails: QU70,QU80,QU100,QU120
Parameter of In Request Q235B Railway Track Light Steel Rail
Model Head
width Rail
height Web
Thickness Bottom
Width Weight Material Rail length
38kg/m 68mm 134mm 13mm 114mm 38.733
kg/m U71Mn/U71
/45Mn 12,12.5m
43kg/m 70mm 140mm 14.5mm 114mm 44.653
kg/m U71Mn/U71
/45Mn 12,12.5m
50kg/m 70mm 152mm 15.5mm 132mm 51.514
kg/m U71Mn/U71
/45Mn 12,12.5m
Material: U71Mn
Length of each piece: 12m,12.5m
Executive standard: refer to GB3426-82
Parameter of In Request Q235B Railway Track Light Steel Rail
Standard:GB11264-89
size Head(mm) Height
(mm) Bottom
(mm) Web
(mm) Weight
(kg/m) Material
(mm) Length
(mm)
GB6KG 25.4 50.8 50.8 4.76 5.98 Q235B 6-12
GB9KG 32.1 63.5 63.5 5.9 8.94 Q235B 6-12
GB12KG 38.1 69.85 69.85 7.54 12.2 Q235B/55Q 6-12
GB15KG 42.86 79.37 79.37 8.33 15.2 Q235B/55Q 6-12
GB22KG 50.3 93.66 93.66 10.72 22.3 Q235B/55Q 6-12
GB30KG 60.33 107.95 107.95 12.3 30.1 Q235B/55Q 6-12
Standard:YB222-63
8KG 25 65 54 7 8.42 Q235B 6-12
18KG 40 90 80 10 18.06 Q235B/55Q 6-12
24KG 51 107 92 10.9 24.46 Q235B/55Q 6-12
