Benefits
High resistance to chipping and fracture
Uniform wear over the entire length of the dresser
Performance independent of dressing orientation
Excellent thermal stability
Diamond with no binder phase
Features:
1.Long service time and reduce the dressing costs per workpiece
2.High precision and efficiency when working, and optimize utilization of machine capacity
3.Rapid incorporation of complex profiles in the grinding wheel
4.Choose different diamond dressing tools on basis of diameter, width, and grain size of the grinding wheels
5.The cross feed rate and cutting is dependent upon grain size, the lower the feed rate, the finer the surface finish
Availability

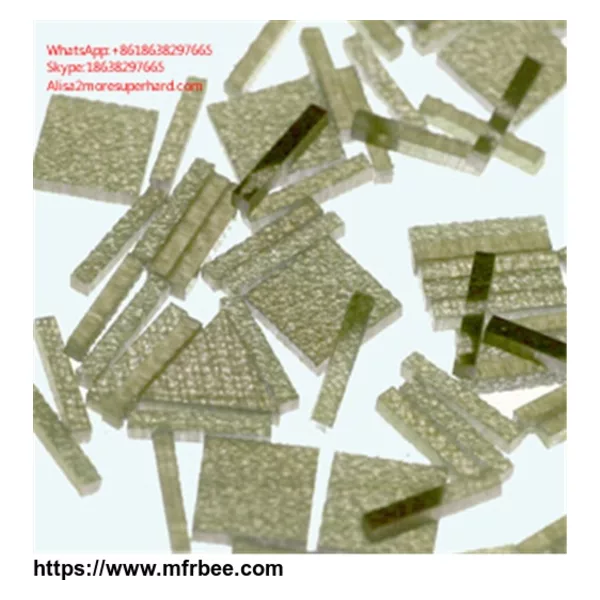

Our CVD diamond dresser is supplied as rectangular logs in various lengths and square .CVD diamond dresser products with non-standard dimensions are available on request.
Product number | dimensions (mm) | |
x length | width x thickness | |
CVDD X0404 | 1.5 - 5.0 | 0.4 x 0.4 |
CVDD X0606 | 1.5 - 5.0 | 0.6 x 0.6 |
CVDD X0808 | 1.5 - 5.0 | 0.8 x 0.8 |
CVDD X1010 | 1.5 - 5.0 | 1.0 x 1.0 |
CVDD X1515 | 3.0 - 7.0 | 1.5 x 1.5 |
CVDD X2020 | 3.0 - 7.0 | 2.0 x 2.0 |
Parameters of properties
vickers hardness | 10000kg / mm² |
density | 3.51 g/cm³ |
young modulus | 1000GPa |
thermal conductivity | 8W/ cm.k |
chemical stability | insoluble in alkali and acid |
Some Grinding wheels wear quite rapidly and should have their profiles and/or cutting edges renewed with diamond dressers. To help customers do their grinding work effectivily, Focus supplied a full range of diamond dreesers for customers.
If you have any questions, please contact us
Whats App:+8618638297665
Skype:18638297665
Alisa@moresuperhard.com
Tel:18638297665
URL:www.moresuperhard.com
