The general fabric conveyor belt is made of EP orNN and finished through the processes of mixing, calendering, firming and vulcanizing.

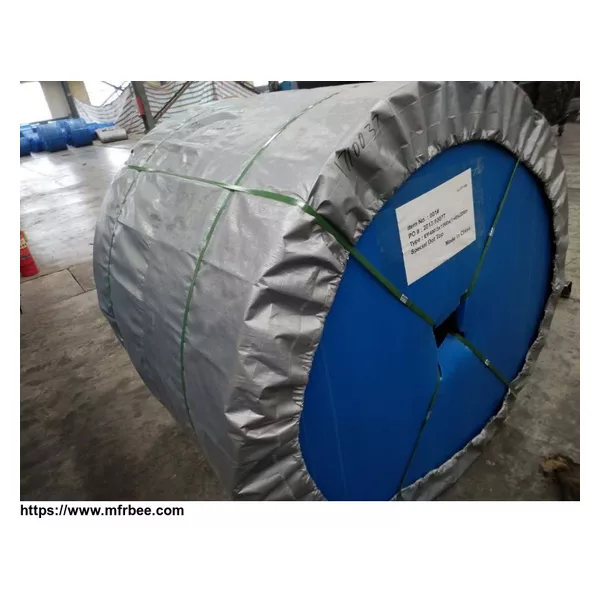

1. EP Conveyor belt; High modulus, low elongation, impact resistant, excellent heat resistant, available for the materials handling of heavy duty, high speed and medium
distance.
2.Nylon Conveyor belt:Flexible, high tension, impact resistant, low elongation, available for the materials handling of heavy duty, high speed and medium
distance.
Specification of fabric belt
Belt Type | Fabric Type | Single Fabric Strength(N/mm) | Single Fabric Thickness(mm) |
Cover
Thickness |
Ply | Width Range | Length(m)/Roll | |
Top Rubber | Bottom Rubber | |||||||
NN Belt | NN100 | 100 | 0.7 | 3 | 1.5 | 2-10 | 300-2800 | 20-400 |
NN125 | 125 | 0.7 | ||||||
NN150 | 150 | 0.75 | ||||||
NN200 | 200 | 0.9 | ||||||
NN250 | 250 | 1.15 | ||||||
NN300 | 300 | 1.25 | ||||||
NN400 | 400 | 1.5 | ||||||
EP Belt | EP100 | 100 | 0.75 | 4.5 | 3 | 2-8 | 300-2800 | 20-400 |
EP125 | 125 | 0.75 | ||||||
EP150 | 150 | 0.85 | ||||||
EP175 | 175 | 0.85 | ||||||
EP200 | 200 | 1 | ||||||
EP250 | 250 | 1.2 | ||||||
EP300 | 300 | 1.35 | ||||||
EP350 | 350 | 1.5 | ||||||
EP400 | 400 | 1.65 | ||||||
EP500 | 500 | 2 |
Fabric Conveyor Belts are named according to different cover grade:
Normal Standard, Oil resistant, Acid resistant, Heat resistant, High temperature resistant, Flame resistant, Cold resistant and Abrasion resistant, etc.
They are widely used in mining, harbour, coal, metallurgy chemical etc.
Please contact me if you need
