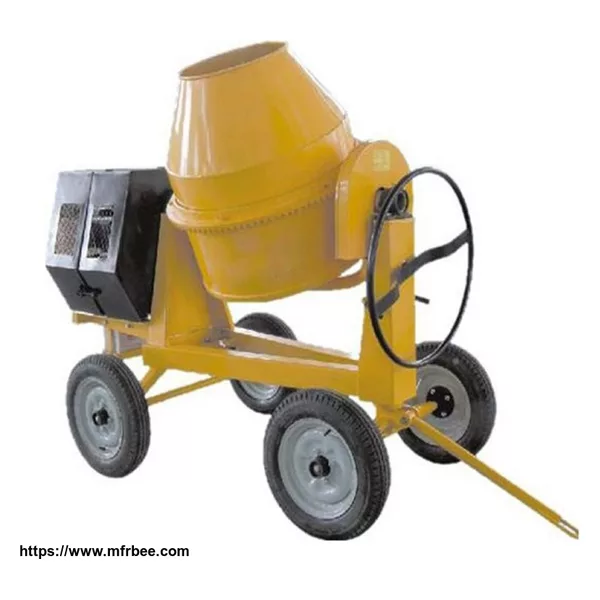

CM2A Portable High Output Concrete Mixer

Keywords:Portable High Output Concrete Mixer, Output Concrete Mixer,CM2A Concrete Mixer, CM2A Portable High Output Concrete Mixer

Introduction ofCM2A Portable High Output Concrete Mixer

Company: Shandong China Coal Industry &amp; Mining Group Co.,Lt
Country: China (Mainland)
Market: world wide
Founded Year: 1994
Address: no.69 huoju road
Contact: Mike Jiang

1.CM2A Portable High Output Concrete Mixer is a device that combines cement, aggregate such as sand or gravel, and water to form concrete. A typical concrete mixer uses a revolving drum to mix the components.

2. For smaller volume works portable concrete mixer is often used so that the concrete can be made at the construction site, giving the workers ample time to use the concrete before it hardens.

3. Portable Concrete Mixer can be assembled with diesel engines, gasoline engines and electric motors with capacities 260L, 300L,350L and 400L .

Parameter ofCM2A Portable High Output Concrete Mixer

Main Technical Parameter
Model	CM-2A Portable Concrete Mixer
Charging Volume	260L	300L	350L	400L	500L
Reclaiming Volume	230L	270L	320L	370L	470L
Productivity	6-10m3/h	8-12m3/h	10-14m3/h	12-16m3/h	16-18m3/h
Speed of Mixing Drum	30r/min
Power Type	Diesel Engine/Gasoline Engine/Electric Motor
Engine Power	4HP	6HP
Drum Thickness	2.75-3.75mm
Transmission Way	Gear Wheel
Type of The Tires	4.00-8
Overall Dimension(LWHmm)	1700× 970×1600	1900×1070×1700	1900×1070×1750	1900×1070×1750	2000×1090×1115
Weight(kg)	300	320	330	340	400
Loading Plan	14 sets Per20gp, 28 sets Per 40HC for Concrete Mixer	12sets/20GP,26sets/40HC for Concrete Mixer
