Keywords:JS500 Concrete Mixer, Concrete Mixers, JSConcrete Mixer

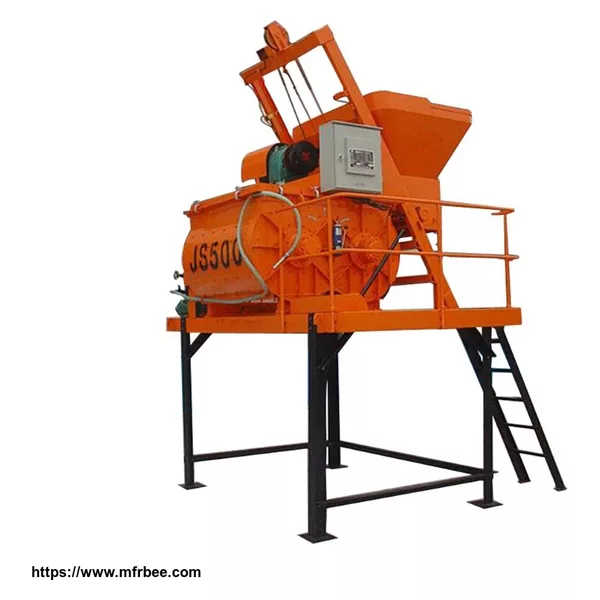

JS500 Concrete Mixer developed by our company is widely used by our global users. This machine can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When matched with batching plant, they can form a simple mixing plant.
Features of JS500 Concrete Mixers:
1. As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing
time, good homogeneity and reliable operation.
2. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.
Application of JS500 Concrete Mixers:
This concrete mixer can be used to mix stiff-consistency concrete, semi-stiff-consistency concrete, light weight
aggregate concrete and so on.
Model | JS500 |
Discharge volume | 500L |
Charging volume | 800L |
Theoretical capacity | ≥25m3 |
Aggregate sizes | ≤60/80mm |
Working circle | 60s |
Mixing blade | |
Speed | 35r/min |
Quantity | 2×7 |
Mixing motor | |
Model | Y180M-4 |
Power | 18.5 kw |
Lifting motor | |
Model | YEZ132S-4 |
Power | 5.5 kw |
Pump motor | |
Model | 50DWB20-8A |
Power | 0.75 kw |
Weight | 1500kg |
Dimensions (L x W x H) | 3030x2300x2680 mm |
