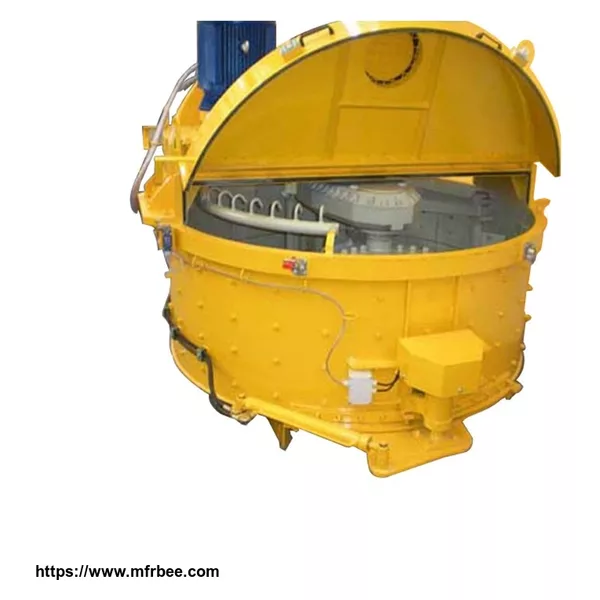

JN Series Planetary Concrete Mixer

Minimum Order: 1
FOB Price: USD $10,000.00 / Piece

Place Of Origin: China

Packaging: plastic bags wooden cases carton boxes or as your requirement

Delivery: 1-7 working days after the bill

china coal 0001

JN Series Planetary Concrete Mixer

Keywords:JN Series Planetary Concrete Mixer, Planetary Concrete Mixer, Concrete Mixer

Mixer Introduction of JN Series Planetary Concrete

JN Series Planetary Concrete Mixer Specifications

Planetary Concrete Mixers widely apply to produce precast concrete common commercial concrete and high performance concrete. It is suitable for mixing dry hard concrete (roller compacted concrete). It is widely used in the production of building blocks and prefabricated parts, and also can be used to produce of steel fiber reinforced concrete, color concrete and dry mortar, etc.

Features of JN Series Planetary Concrete

1. Steady Driving.

The power transmission is realized by a hard surface gearbox

2. High Mixing Efficiency.

The gear box drives the mixing arms to move with complex track, and the mixing is turbulent, then the mixer works more effectively.

3. Homogeneous Mixing.

Mixing blades are composed of several groups of mixing arms, which covers the entire mixing region. Both revolution and rotation of mixing blades ensure the homogeneity of the material. As the picture shows, mixing blades’ motion track covers the whole drum after a cycle.

4. Multiple Discharging Method.

According to various demands of customers, the discharging door can be operated hydraulically, pneumatically or manually.

5. Special Designed Water Sprayer

Special designed sprayer makes the water cloud cover more area and ensure the even distribution of the materials.

6. Easy to maintain and no leakage problem. Transmission system (including motor) is located at the top of mixing drum, completely separated from the concrete. It’s convenient for maintenance and there is no leakage problem at the shaft end.

Parameter of JN Series Planetary Concrete Mixer

Technical Parameters Model

JN250 JN330 JN500 JN750 JN1000 JN1500 JN2000 JN2500 JN3000

Charging Volume (L) 375 500 750 1125 1500 2250 3000 3750 4500

Discharging Volume (L) 250 330 500 750 1000 1500 2000 2500 3000

Discharging Capacity(kg) 600 800 1200 1800 2400 3600 4800 6000 7200

Diameter of Mixing Drum (mm) 1300 1540 1900 2192 2496 2796 3100 3400 3400

Mixing Power (kw) 11 15 18.5 30 37 55 75 90 110

Discharging Power (kw) 2.2 2.2 2.2 2.2 3 3 4 4 4

Mixing Blades(nr) 1/2 1/2 1/2 1/3 2/4 2/4 3/6 3/6 3/9

Side Scraper 1 1 1 1 1 1 1 1 1

Discharging Scraper - - - 1 1 1 2 2 2

Weight（kg） 1200 1700 2000 3500 6000 7000 8500 10500 11000

Dimension(L*W*H)mm 1570

*1480

*1750 1862

*1850

*1855 2220

*2071

*1880 2550

*2295

*2195 2893

*2606

*2217 3223

*2906

*2425 3625

*3235

*2630 3893

*3555

*2695 3893

*3555

*2975

Lifting Power(kw) 3 4 4 7.5 11 15 18.5 - -

Country: China (Mainland)
Business Type:
Market:world wide
Founded Year:1994
Address:no.69 huoju road
Contact:Mike Jiang

more images of JN Series Planetary Concrete Mixer
