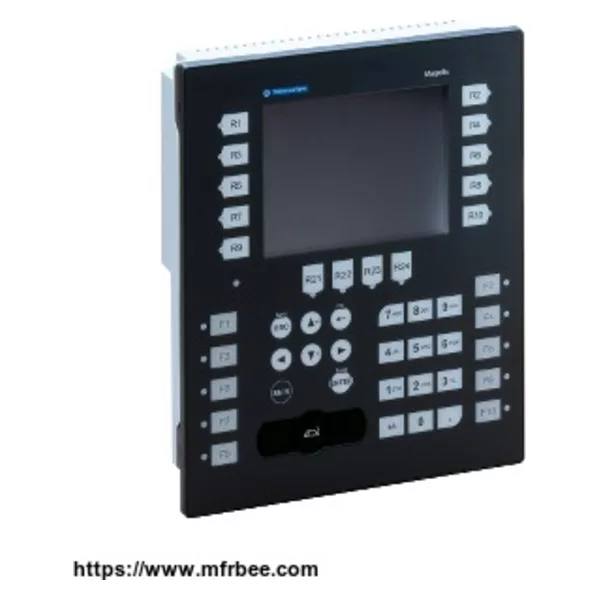

XBTGK2330
Product Quick Detail
- FOB Price
- USD $111.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- United State
- Packaging
- with factory sealed
- Delivery
- 2-3 days
Specifications
| range of product | Magelis XBTGK | |
|---|---|---|
| product or component type | Advanced touchscreen panel with keyboard | |
| display type | Backlit colour TFT LCD | |
| display colour | 65536 colours | |
| display resolution | 320 x 240 pixels QVGA | |
| display size | 5.7 inch | |
| software type | Configuration software | |
| software designation | Vijeo Designer | |
| operating system | Magelis | |
| processor name | CPU RISC | |
| processor frequency | 133 MHz | |
| memory description | 512 kB SRAM back up of data with lithium battery back-up | |
| resistance to electrostatic discharge | 4 kV conforming to IEC 61000-4-2 level 3 | |
| cut-out dimensions | 209 (+/- 0.4) x 243 (+/- 0.4) mm |
| touch sensitive zone | 1024 x 1024 | |
|---|---|---|
| touch panel | Analogue | |
| backlight lifespan | 50000 hours | |
| brightness | 8 levels via touch panel | |
| character font | ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean Taiwanese (traditional Chinese) | |
| [Us] rated supply voltage | 24 V DC | |
| supply | External source | |
| supply voltage limits | 19.2...28.8 V | |
| inrush current | <= 30 A | |
| power consumption in W | 26 W | |
| number of dynamic function keys symb | 14 with LED | |
| number of static function keys | 10 with LED and labels | |
| number of SERVICE keys | 8 | |
| number of alphanumeric keys | 12 | |
| local signalling | 1 LED with green or orange for normal operation or backlighting faulty | |
| number of pages | Limited by internal memory capacity | |
| downloadable protocols | FIPWAY Telemecanique Modicon Modbus Plus Telemecanique Modicon Modbus TCP Telemecanique Modicon Modbus Telemecanique Modicon Third party protocols Mitsubishi Melsec Third party protocols Omron Sysmac Third party protocols Rockwell Automation Allen-Bradley Third party protocols Siemens Simatic Uni-TE Telemecanique Modicon | |
| realtime clock | Built-in | |
| use of slot | For 1 fieldbus communication card (Device Net, Profibus DP) | |
| port Ethernet | 10BASE-T/100BASE-TX | |
| product mounting | Flush mounting | |
| fixing mode | By 10 spring clips By 4 screw clamps | |
| front material | Aluminium alloy | |
| enclosure material | PPT | |
| marking | CE | |
| width | 220.3 mm | |
| height | 265 mm | |
| depth | 60.3 mm |
| immunity to microbreaks | <= 5 ms | |
|---|---|---|
| standards | EN 61131-2 FCC Class A IEC 61000-6-2 UL 1604 UL 508 CSA C22.2 No 14 | |
| product certifications | CSA Class 1 Division 2 T4A CSA Class 1 Division 2 T5 C-Tick cULus UL Class 1 Division 2 T4A UL Class 1 Division 2 T5 | |
| ambient air temperature for operation | 0...50 °C | |
| ambient air temperature for storage | -20...60 °C | |
| relative humidity | 0...90 % without condensation | |
| operating altitude | < 2000 m | |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529 IP65 (front panel) conforming to IEC 60529 | |
| NEMA degree of protection | NEMA 4X front panel (indoor use) | |
| shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 | |
| resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 | |
| resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| RoHS (date code: YYWW) | Compliant - since 0740 - Schneider Electric declaration of conformity Schneider Electric declaration of conformity | |
| REACh | Reference not containing SVHC above the threshold | |
| Product environmental profile | Available | |
| Product end of life instructions | Available |
