11# mine i beam - zxsteel group

Minimum Order
100
Place Of Origin
China
Packaging
Standard packaging
Delivery
Usually using container also can as customer's requirements

Mining i beam is also called mine beam, it is a typical profile in the current mining industry and the coal support field, this type of steel is named for its section. Mainly used for the support of mine tunnel.
Application: It is mainly used in mine roadway, secondary support of mine roadway and supporting support for the tunnel.

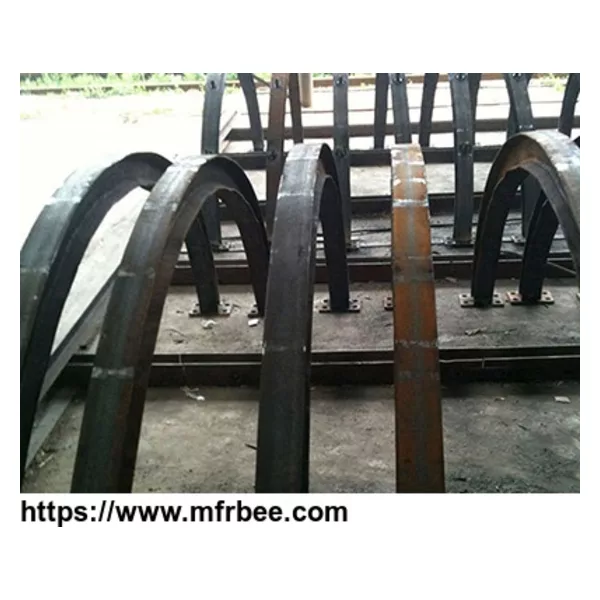

Specification: T chanel support, arch support
Size: 11#
Material: Q345B
Characteristic: High pressure, long support time, easy to install, etc.

1. The outer edge of the i-steel shall not be more than 2.4% of the width of the legs.

2. The bending deflection of the i-steel shall not be greater than 1.0mm.

3. The degree of eccentricity of i-steel shall not be more than 2% of the width of the legs. Degree of eccentricity = b2-b1/2.

4. The bending degree of the steel shall not be greater than 3mm.

If you are intrested in our products,please contact us.

Tel:+86-18236766038 (WeChat)

E-mail: zxminesupport@zxsteelgroup.com

  • Country: China (Mainland)
  • Business Type:
  • Market:Asia,Middle East,Africa,Americas
  • Founded Year:2014
  • Address:
  • Contact:xie Ethan
