Glass Apparatus

Minimum Order
1
Packaging
N/A
Delivery
15 Days

Glass Condenser, Glass Water Separator Has Anti-Corrosion, Sealing Tightly

Glass apparatusis very popular in the laboratories and many chemical industries. Our glass apparatuses are made of borosilicate glass or quartz glass that has good corrosion resistance and high temperature resistance. They will not be corroded by chemical materials. And we can observe the experimental situation through the transparent surface. We have glass condenser and glass oil water separator.

Glass water separator.It is widely used in distillation experiment. Glass water separator makes the organic layer above the aqueous layer formed by the reaction return to the reaction flask, and remove generated water. And glass water separator is connected with flange interface. It is easy to install and remove.

Glass condenserIt is mainly used for condensation and cooling. And it is also widely used in cooling, reflux, distillation of chemical process. Glass condenser has compact structure and small space. Additional, each joints are connected by flange. All these make it be assembled easily and flexibly. We have glass coil pipe condenser and glass tube condenser. In addition, we have different specifications to meet the needs of different cooling area.

GA-1:Glass water separator

GA-2:Glass joint condenser.

GA-3:Glass coil pipe condenser

GA-4:Glass tube condenser

Specification

  • Material:borosilicate glass or quartz glass.
  • Applicable temperature range:﹣50 °C to +180 °C.
  • The maximum temperature difference:≤ 120°C.
  • Product:
    • Glass water separator.
    • Glass condenser.
      • Glass coil pipe condenser.
      • Glass tube condenser.

GA-5:Schematic of glass coil pipe condenser sizes

GA-6:Schematic of glass tube condenser sizes

Table 1: Specification of Glass Coil Pipe Condenser
Heat exchange area(m2) DN1 (mm) DN (mm) DN2 (mm) L (mm) L1 (mm) L2 (mm)
0.3 15 100 25 450 300 65
15 100 40 450 300 80
15 100 50 450 300 85
15 100 80 450 300 100
0.6 25 150 25 525 355 65
25 150 40 525 355 80
25 150 50 525 355 85
25 150 80 525 355 100
25 150 100 525 355 100
1 25 180 25 620 430 65
25 180 40 620 430 80
25 180 50 620 430 85
25 180 80 620 430 100
25 180 100 620 430 100
1.5 40 230 25 725 485 65
40 230 40 725 485 80
40 230 50 725 485 85
40 230 80 725 485 100
40 230 100 725 485 100
2.5 50 300 50 725 485 85
50 300 80 725 485 100
50 300 100 725 485 100
3 50 300 50 830 585 90
50 300 80 830 585 100
50 300 100 830 585 100
Table 2: Specifications of Glass Tube Condenser
Heat exchange area(m2) Φ (mm) DN (mm) DN1 (mm) L (mm)
3 (vertical) 180 25–100 25 2100
3 (horizontal) 2000
5 (vertical) 230 40 2400
5 (horizontal) 2200
10 (vertical) 300 50 2700
10 (horizontal) 2500

Feature

  • Good corrosion resistance.
  • Excellent high temperature resistance.
  • Sealing tightly, no leaks.
  • Good impact resistance, not easy to be damaged.
  • Smooth and transparent surface, can observe the process clearly.

Application

Glass condenser can be used in:

  • Distillation equipment.
  • Chemical industry.
  • Biological industry.
  • Pharmaceutical industry.
  • Military chemical industry.
  • Pesticide industry.
  • Food chemical industry.
  • Salt chemical industry.
  • Dye industry.

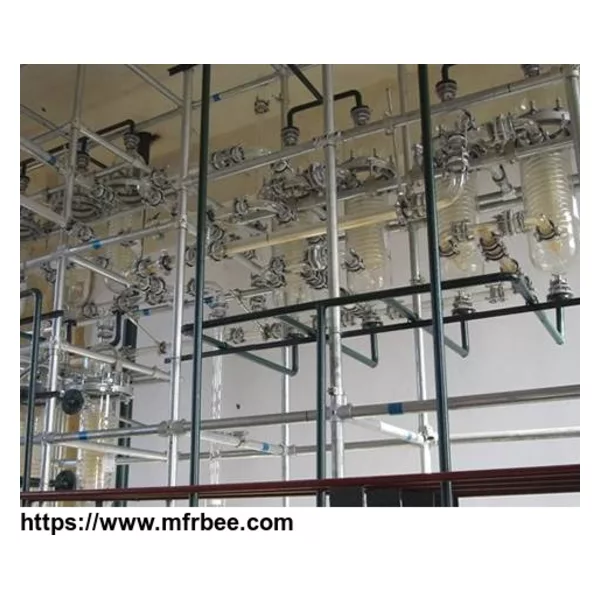

GA-7:Glass coil pipe condenser used in chemical industry

GA-8:Glass coil pipe condenser in biological industry

GA-9:Glass coil pipe condenser is used in pharmaceutical industry

GA-10:Glass tube condenser used in chemical industry

GA-11:Glass tube condenser can be used in biological industry

GA-12:Glass tube condenser used in distillation equipment
