Glass Tube of Various Diameter and Thickness

Glass tubesare made of soda-lime, borosilicate or quartz material and they have broad range of quality. Glass tubes are widely used in laboratory, chemical industry, biology industry, gardening, and so on.

According to different dimension and accuracy, glass tubes can be divided into normal glass tube, precisionglass tube

With good chemical, mechanical and thermal properties, small tolerance and various dimension, the glass tubes are widely used in daily life, industry and laboratory.

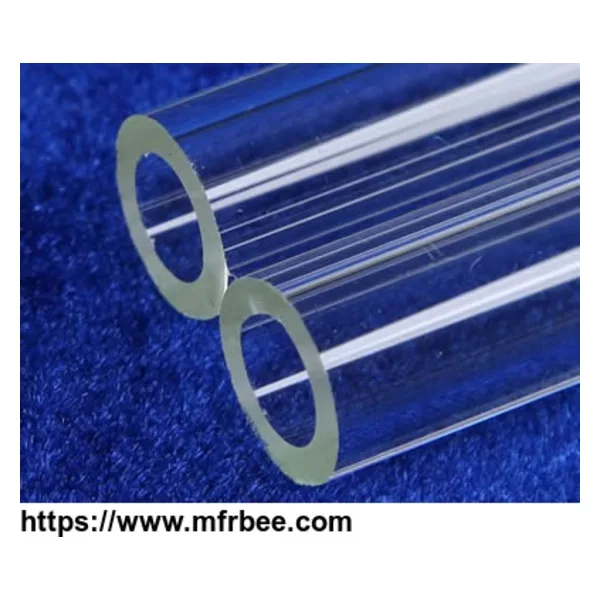

GT-1:The straight polished glass tubes have good thermal and chemical properties.

GT-2:Various sizes glass tubes are used in different equipment.

Specification

• Material:soda-lime, borosilicate, quartz.
• Diameter and Tolerance

• Glass tubes diameter and tolerance

  	Inside diameter	Tolerance	Outside diameter	Tolerance
  Normal glass tube	5-500 mm	0.5 mm	5.1-550 mm	0.5 mm
  Precision glass tube	5-500 mm	0.005 mm	5.1-550 mm	0.005 mm
  Heavy wall capillary tube	0.025-0.508 mm	0.02 mm	0.5-6.4 mm	0.4 mm


  We will check carefully the outside diameter, thickness and length of the glass tubes to control the tolerance.

  GT-3:The heavy wall capillary tubes have strong acid, alkali, high temperature resistance ability.


  GT-4:Producing the precision glass tubes requires very high technology and can meet the requirement for precise instruments.
• Length:10 mm - 2500 mm.
• Color:red, green, pink, yellow and so on.
• Edge handling:polishing.
• thermal properties

• Glass tubes thermal properties

  Material	Soda-lime	Borosilicate	Quartz
  SiO2content	60% - 75%	> 81%	> 90%
  Density at 25 °C	2.53 g/cm3	2.23 g/cm3	2.20 g/cm3
  Coefficient of thermal expansion	8.6 × 10-6m/k	3.3 × 10-6m/k	5.5 × 10-7m/k
  Softening point	726 °C	820 °C	1780 °C
  Melting point	780 °C	1680 °C	2000 °C
  Annealing point	546 °C	560 °C	1120 °C
  Temperature for short time	400 °C	500 °C	1500 °C
  Temperature for long time	350 °C	450 °C	1200 °C
  Specific heat	0.18 J/kg °C	0.9 J/kg °C	670 J/kg °C

Features and advantages

• Acid and alkali resistance
  The acid and alkali resistance is high, especially quartz, which do not react with any acid except hydroflouric acid. The stability of glass is 30 times of ceramic and 150 times of stainless steel.
• Tight dimensional tolerance
  The dimension is accurate and the tolerance is tight. What's more, we can customize according to your requirement.
• Low coefficient of thermal expansion
  Our glass tubes have low coefficient of thermal expansion. The softening point can reach 1500 °C, so that the glass tube can withstand temperature as high as 1200 °C.
• Precise boring
  As for our precision glass tube, the tolerance can be as small as 0.005 mm.
• Excellent outlooking
  Our glass tube are clear, bright and polishing. We can also color it as your requirement.

Application

• Glass tubes used in laboratory
  Because of its stable chemical property, various sizes of tubes, as connecting pipe, guide tube and so on, are widely used in chemical and biology laboratory.
• Glass tubes used in chemical industry, petrochemical industry, biochemical pharmaceutic, military industry, metallurgy, water treatment and so on.
• Glass tubes used as decoration
  Due to the clear, transparent, and crystal features, the glass tubes are also used as decoration in home, hotel as well as restaurant.
• Glass tubes used in gardening
  The glass tube can be used in cultivating plants and storing seeds.
• Glass tubes used in renewable energies
• Glass tubes used in light.

GT-5:The glass tube is transparent which make it easy to obverse the experimental process.

GT-6:The transparent glass tube can give enough sunshine to the plants and easy to obverse the process.

Package and transportation

• In order to avoid breaking, glass tubes are packaged in 5 layer corrugated cartons or pallet, with foam or bubble wrap.
• We can also pack the glass tubes according to customers' requirements.

GT-7:Foam packed glass tubes are packed again in cartons to avoid breaking.

GT-8:All the glass tubes are strongly packed in cartons.
