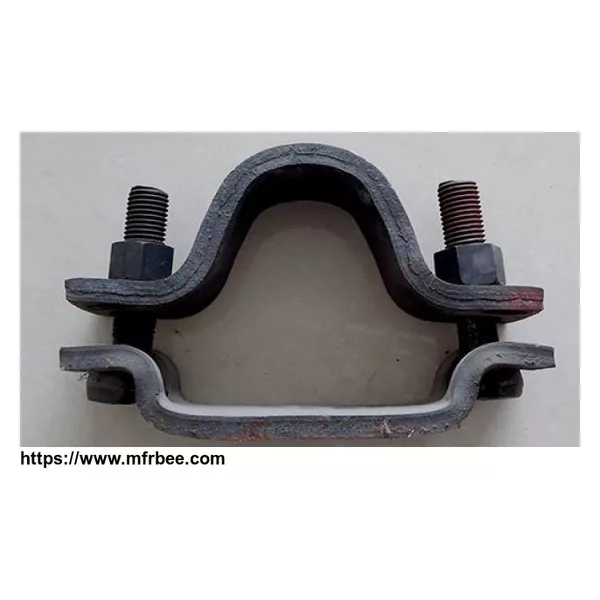

model: U25/U29/U36 single chuck clamp, double chuck clamp, upper limit clamp, lower limit clamp
material: Q235, Q345(16Mn)
U shaped clamp as the positioning of U shaped support, require high stress, safe and stable, solid and duiable, use this equipment to manufacture clamp can meet the requirement, and can save the
material, forming a stable, high machining efficiency and high investment and low efficiency, etc.
If you are interested in the product, please contact us or leave a message.
Tel:+86-15039021061(WeChat)
E-mail: zxminesupport@zxsteelgroup.com
