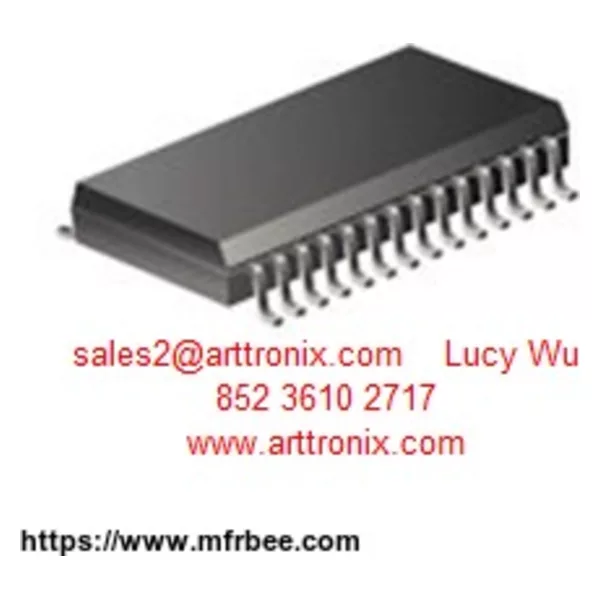

Maxim MAX306EWI+T

Lead Finish	Matte Tin
Minimum Single Supply Voltage	5 V
MSL Level	1
Power Supply Type	Single\|Dual
Maximum Turn-On Time	600@12V ns
Maximum Supply Current	0.5@15V/-0.001@-15V mA
Maximum Power Dissipation	1000 mW
Maximum Single Supply Voltage	30 V
Max Processing Temp	260\|300
Supplier Package	SOIC W
Product Dimensions	18.1 x 7.6 x 2.35 mm
Number of Outputs per Chip	1
Operating Temperature	-40 to 85 °C
Mounting	Surface Mount
Typical Supply Current	0.075@±15V mA
Maximum High Level Output Current	30 mA
Typical Single Supply Voltage	9, 12, 15, 18, 24, 28 V
Maximum On Resistance	175@12V Ohm
Maximum On Resistance Range	150 to 250 Ohm
Chip Enable Signals	Yes
Configuration	Single 16:1
Type	Analog Multiplexer
Pin Count	28
Output Signal Type	Single
Minimum Dual Supply Voltage	±4.5 V
Maximum Dual Supply Voltage	±20 V
Number of Channels per Chip	1
Typical Dual Supply Voltage	±5\|±9\|±12\|±15\|±18 V
Maximum Propagation Delay Bus to Bus	300@±15V\|450@12V ns
Input Signal Type	Single
Number of Inputs per Chip	16
