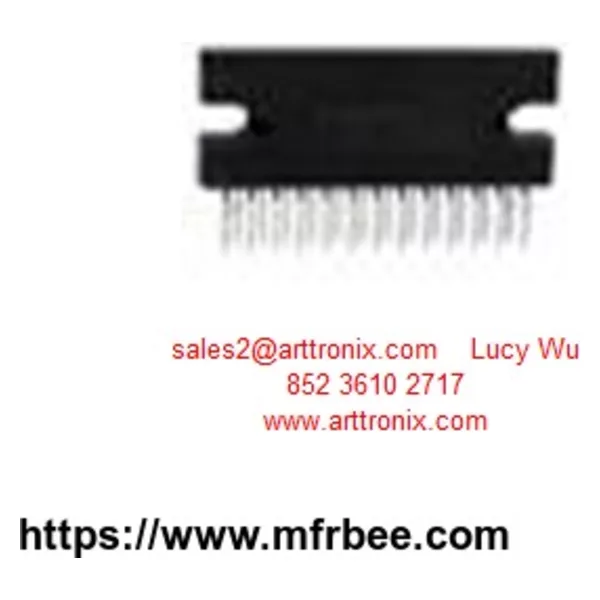

TOSHIBA TB6560AHQ

Categories

Integrated Circuits (ICs)

PMIC - Motor Drivers, Controllers

Manufacturer

Toshiba Semiconductor and Storage

Series

-

Packaging

Tray

Part Status

Preliminary

Motor Type - Stepper

Bipolar

Motor Type - AC, DC

-

Function

Driver - Fully Integrated, Control and Power Stage

Output Configuration

Half Bridge (4)

Interface

Parallel

Technology

Power MOSFET

Step Resolution

1, 1/2, 1/4, 1/8, 1/16

Applications

General Purpose

Current - Output

3A

Voltage - Supply

4.5 V ~ 5.5 V

Voltage - Load

4.5 V ~ 34 V

Operating Temperature

-30°C ~ 85°C (TA)

Mounting Type

Through Hole

Package / Case

25-SIP Formed Leads

Supplier Device Package

25-HZIP
