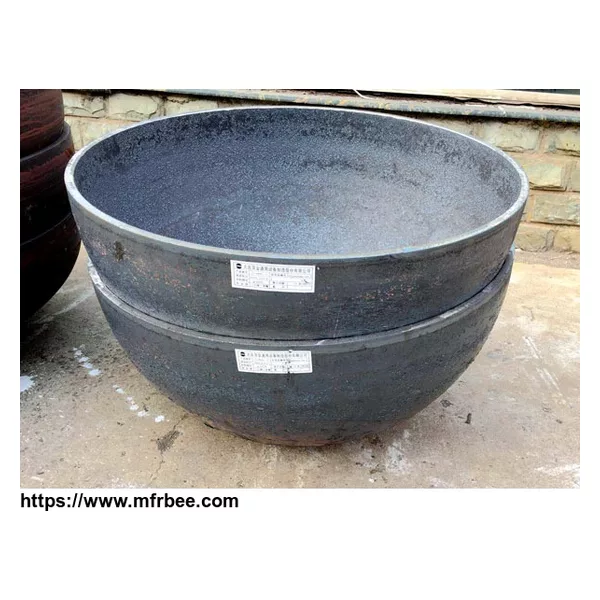

China Hemispherical Head dished Head
Product Quick Detail
- Place Of Origin
- ChinaDalian
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
中国半球形头碟形头-定金通用机械有限公司成立于2000年，专业生产碟形埃德头部
公司拥有德国自产DF 10050、DF 2220和MD 21/5030三套纺纱设备。采用Φ325*thk 8到Φ10000*Thk 50集成技术，可形成不同形状和规格的盘头。定金拥有7台液压机，其中2台为1000吨，1台为2000吨，1台为8000吨，1台为16000吨。其余2000吨和630吨双作用液压机是在中国购买的。公司拥有配套配套设备7台热风炉28台(最大起重能力100吨)。盘头(端)加工尺寸：整体旋压工艺的最大尺寸为Φ10000×50 mm，整体冲压工艺的最大尺寸为Φ6000×400 mm，制作多瓣盘头(端)时不限制直径，最大厚度可达300 mm。
主要产品：椭圆封头中国
- Country: China (Mainland)
- Business Type: 生产厂家
- Market:大洋洲,非洲,美洲,新兴市场,亚洲,欧洲,欧洲联盟
- Founded Year:2003
- Address:No.6 Youquan Road, Zhanqian Sub-district, Jinzhou District, Dalian City, PRC
- Contact:Gigi Tan
Other products from Dingjin General Machinery Co., Ltd.
Relate products of China Hemispherical Head dished Head
With cold press forming, dished heads can be formed with inner diameter ranges from 200-3200mm, 50mm pitch up to2000mm, and 100mm pitch fro above ...
Cold spinning is used to fabricate non-standard dished heads or very larger dished ends in diameter. By this forming way, dished heads can be formed with inner diameter ranged from 400-8000mm and plate thickness can be up to 40mm.The diameter even will be up to 9000mm if height ...
Hot press forming is used to fabricate dished heads when their plates are very thick or material is special materials. While the thickness forming range is more than other forming way or we must use this forming due to material grade restriction. The diameter range is up to ...
Hot spinning forming is used to fabricate dished ends while our has no tooling for hot press.This forming is very economic and can be formed as client design without new tooling The max thickness is 80mm and diameter can be up to ...
Segment forming is used to fabricate very larger, specially shaped dished heads, which can\'t be fabricated via press or cold spinning forming way. Finally dished heads will be either segments shipment or assemble and welded single piece shipment. The diameter is no limit but ...
Segment forming is used to fabricate very larger, specially shaped dished heads, which can\'t be fabricated via press or cold spinning forming way. Finally dished heads will be either segments shipment or assemble and welded single piece shipment. The diameter is no limit but ...
Hot spinning forming is used to fabricate dished ends while our has no tooling for hot press.This forming is very economic and can be formed as client design without new tooling The max thickness is 80mm and diameter can be up to ...
Hot press forming is used to fabricate dished heads when their plates are very thick or material is special materials. While the thickness forming range is more than other forming way or we must use this forming due to material grade restriction. The diameter range is up to ...
Cold spinning is used to fabricate non-standard dished heads or very larger dished ends in diameter. By this forming way, dished heads can be formed with inner diameter ranged from 400-8000mm and plate thickness can be up to 40mm.The diameter even will be up to 9000mm if height ...
With cold press forming, dished heads can be formed with inner diameter ranges from 200-3200mm, 50mm pitch up to2000mm, and 100mm pitch fro above ...
