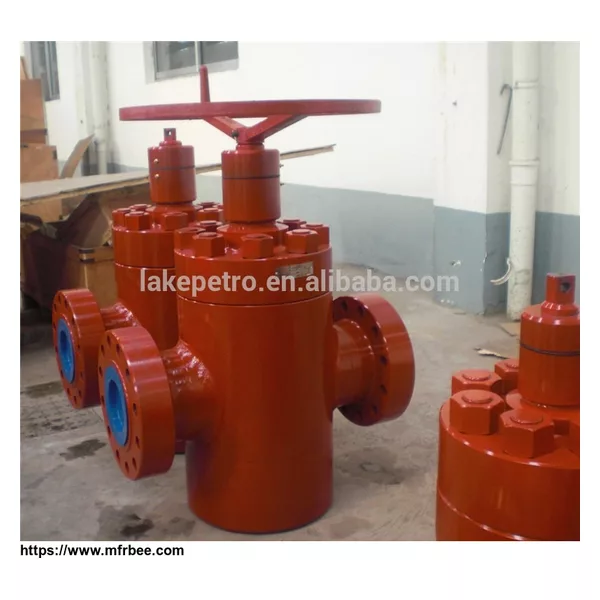

API 6A hydraulic gate valve for well control
Bore Size: | 2-1/16” to 9" |
Working Pressure Rating: | 5, 000psi to 20, 000psi |
Material Class: | AA, BB, CC, DD, EE, FF |
Temperature Class: | K, L, P, R, S, T, U, V, X |
Product Specification Level: | PSL1 to PSL3 |
Performance Rating: | PR1 and PR2 |
End connections: | Flanged, Studded |
Medium: | Oil, Gas, Water, etc |
Construction is as follows Name API6A GATE VALVE 1.Size 1/13-16\\\"~7-1/16\\\" 2.Pressure 2000PSI~20000PSI 3.Material AA. BB. CC. DD. EE. FF. 4.Product Specification Level PSL-1 ~ PSL-3,NACE MR 0175 Structure -Forged body & bonne -Low operation torque -Metal-to-metal ...
The choke valve, a main component of Christmas tree, is design to control production rate of the oil well, with working pressure up to 15000psi. Choke valves can be classified as follows: adjustable choke valves and positive choke valves. By rotating hand wheel to move the ...
1. Main Technical Parameters: 2. Product Description: Float valve is one of necessary tool for oil drilling, it consists of float valve sub and float valve. The main function are to prevent drill cuttings come into mud when connecting each joint and the bit bore block caused by ...
1. Main Technical Parameters: 2. Product Description: Full Opening Safety Valve is a manual control ball type safety used to stop flow through the drill string. FOSV assembled between lower kelly sub and upper drill pipe sub. In the drilling operation, in order to avoid ...
1. Main Technical Parameters: 2. Product Description: Kelly Valve is an effective manually operated ball type valve for the drill stem. It located within the drill string that allow for free-passage of drilling fluid without pressure loss and are specifically designed for ...
1. Product Description: The mud gate valve, with superior design features precision workmanship an a proven principle are engineered to meet the harsh drilling requirements in today’s oilfield.The valve conforms to the standard flange dimensions and pressure rating of 3000 ...
1. Product Description: Gate Valve is used to open or close the pipeline. According to the structure, the gate valves is distributed into rising or non-rising stem gate valve. According to the mode of operation, it is distributed into manual or hydraulic etc. The gate valve is ...
1. Product Description: Gate Valve is used to open or close the pipeline. According to the structure, the gate valves is distributed into rising or non-rising stem gate valve. According to the mode of operation, it is distributed into manual or hydraulic etc. The gate valve is ...
1. Product Description: Gate Valve is used to open or close the pipeline. According to the structure, the gate valves is distributed into rising or non-rising stem gate valve. According to the mode of operation, it is distributed into manual or hydraulic etc. The gate valve is ...
Design Standard: API 6A Design Configurations: Slab Gate, non-rising stem or rising stem, Expanding Gate, non-rising Size Range: 1-13/16”~11” Pressure Rating: 2000psi~15000psi Body Material: Carbon or low-alloy steel, stainless steel , corrosion resistant alloys Trim ...
