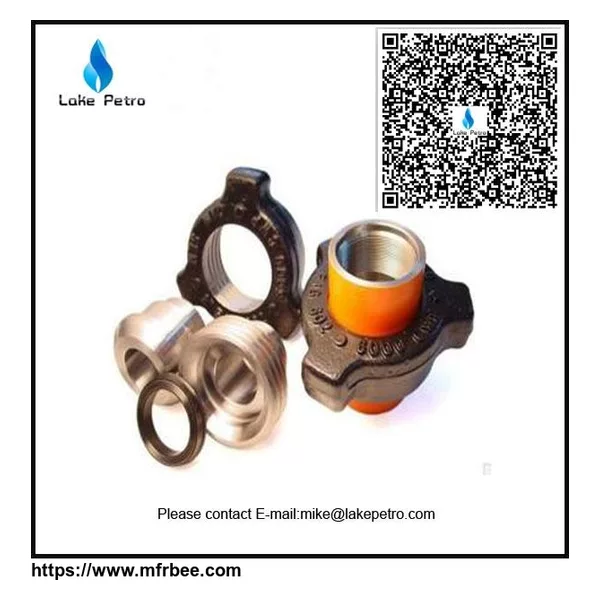

FMC Weco Fig 100 to 1502 Hammer Union
Model Number: Fig.100, Fig200, Fig206, Fig602, Fig1002,Fig1502
Standard: Jic /JIS/GB /ANSI /API
We can provide various hammer unions based on the introduced technologies from other country,including thread connection type,welding type and H2S service unions.1"-6" and CWP of
1000psi-20,000psi unions are available.For easy identification,unions with different pressure ratings will be painted in different colors,and there are evident marks indicating size,connecting mode
and pressure ratings.
Seal rings are made of quality rubber compound which greatly enhance load-bearing capacity and sealing performance and protect connectors from erosion.Different pressures and applications have
different sealing method.
High pressure union is forged and made of high strength alloy steel with world-class technology. Strict heat treatment ensures uniform metallographic structure and bearing capacity in the connector. The materials used fully comply with ASTM and AISI of USA, and the technical indicates of the product with API Spec 16C standard. The product is tight and reliable, and provides easy mounting and dismantling and good exchangeability. The connector of the product allows connection for pipeline thread, oil tube thread and butt weld or pressureless seal end.
Fig.100:
The connecting surface of precise linear seal ensures reliable pressure sealing. Application is recommended for low-pressure manifold and operating pressure at maximum 1,000 psi.
Fig.200
With compact construction, this union is widely used on low-pressure kill line and in application of air,water, oil or steam with medium pressure. Butt weld Sch.40 is desired for the applicable figure.
Fig206,
Working Pressure: 6,000psi(414 bar) Features: Compact Replaceable,lip-type seal provides primary seal,protects secondary metal-to-metal seal,and minimizes flow turbulence Butt-weld available Available for sour gas service:6,000 psi (414 bar)cold working pressure Recommended ...
Working Pressure: 6,000psi(414 bar) Features: Bronze seat provides primary seal;will not rust in water services Recommended Service: Steam service, boiler connections, manifold, and line connections for production, drilling, and well servicing As one of the most professional ...
Product Description Hammer Unionsare designed as heavy-duty, high-pressure flow line connectors, which is commonly applied to chemical plants, on marine dredging vessels, in strip mines and in the oil industry. The colour-coding system on Hammer Unions represents the different ...
Working Pressure: 6,000psi(414 bar) Features: Compact Replaceable,lip-type seal provides primary seal,protects secondary metal-to-metal seal,and minimizes flow turbulence Butt-weld available Available for sour gas service:6,000 psi (414 bar)cold working pressure Recommended ...
Working Pressure: 6,000psi(414 bar) Features: Bronze seat provides primary seal;will not rust in water services Recommended Service: Steam service, boiler connections, manifold, and line connections for production, drilling, and well servicing As one of the most professional ...
Fast Installation Wherever they are,wing nuts and right ACME will ensure quick installation or dismantling without special tools. Highly Interchangeable All unions are made in American system,and can be interchanged with products in international market. Seal rings are fully ...
1. Product Description: Hammer Unions are designed as heavy duty, high pressure flow line connectors, which is commonly applied to chemical plants, on marine dredging vessels, in strip mines and in the oil industry. The color coding system on Hammer Unions represent the ...
Figure 206 Hammer Union Nominal pipe Size:1”, 2”, 3”,4”,6”,8”, 10”; Pressure Rating:2000psi cwp;3000 psi test; Connections Type: pipeline thread, tubing thread, butt-weld; Component Parts: Nut, Male Sub, Female Sub, Seal Ring; Sour Service Models to NACE MR-01-75. ...
The Hammer Union type mainly consists of Figure 100, Figure 200, Figure 206, Figure 300, Figure 400, Figure 600, Figure 602, Figure 1002, Figure 1003, Figure 1502 and Figure 2002, figure 2202 Hammer Union We can provide various hammer unions based on the introduced technologies ...
FMC Weco Figure 100 to 2202 hammer union Introduction: The Hammer Union type mainly consists of Figure 100, Figure 200, Figure 206, Figure 300, Figure 400, Figure 600, Figure 602, Figure 1002, Figure 1003, Figure 1502 and Figure 2002, figure 2202 Hammer Union We can provide ...
