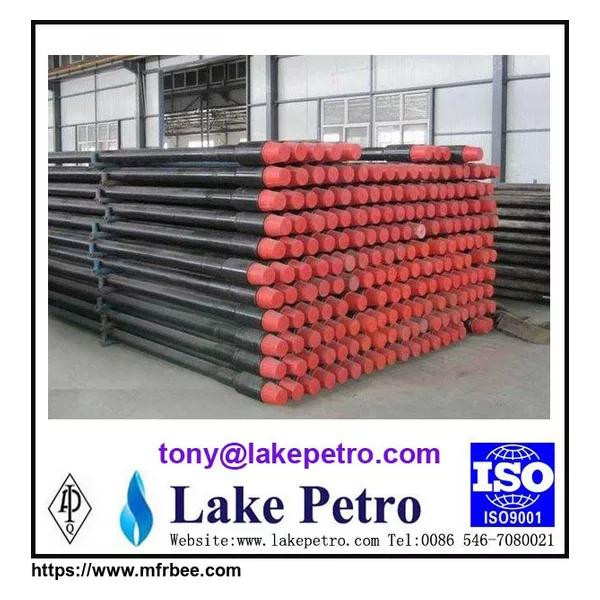

API 5DP oil / water / gas well drill pipe
oil / water / gas well drill pipe
Specifications of the drill pipes:
Designation | Pipe Body OD | Plain End Weight |
Pipe Wall Thickness |
RSC Type | Grade |
Upset Type |
||||
Lable1 | Lable2 | |||||||||
in | lb/ft | inch | mm | lb/ft | kg/m | in | mm | / | / | / |
2 3/8 | 6.65 | 2.375 | 60.32 | 6.26 | 9.33 | 0.280 | 7.11 | NC26 | E, X, G | EU |
3 1/2 | 13.30 | 3.500 | 88.90 | 12.31 | 18.34 | 0.368 | 9.35 | NC38 | E, X, G, S | EU |
15.50 | 3.500 | 88.90 | 14.63 | 21.79 | 0.449 | 11.40 | NC38, NC40 | E, X, G, S | EU | |
4 | 14.00 | 4.000 | 101.60 | 12.93 | 19.27 | 0.330 | 8.38 | NC40, NC46 | E, X, G, S | EU, IU |
5 1/2 | 21.90 | 5.500 | 139.70 | 19.81 | 29.52 | 0.361 | 9.17 | 5 1/2 FH | E, X, G, S | IEU |
24.70 | 5.500 | 139.70 | 22.54 | 33.57 | 0.415 | 10.54 | 5 1/2 FH | E, X, G, S | IEU | |
6 5/8 | 25.20 | 6.625 | 168.28 | 22.19 | 33.04 | 0.330 | 8.38 | 6 5/8 FH | E, X, G, S | IEU |
27.70 | 6.625 | 168.28 | 24.22 | 36.06 | 0.362 | 9.19 | 6 5/8 FH | E, X, G, S | IEU | |
RSC-Rotary Shouldered Connection, EU-External Upset, IU-Internal Upset, IEU-Internal and External Upset |
