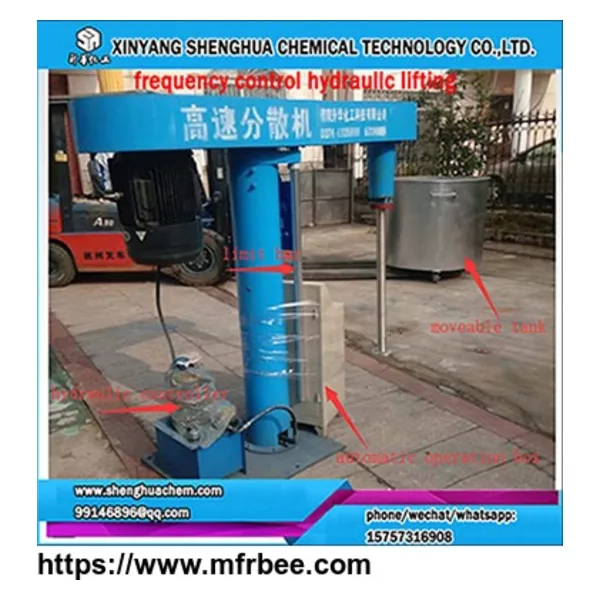

Z-1000 High speed dispersion machine
Product Quick Detail
- FOB Price
- USD $3,000.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Description:
This machine are used for mixing and dispersing solid - liquid mixtures, and widely used in the mixing, dissolving and dispersing of two or more liquid and solid powdery chemicals, such as internal and external wall latex paint, vitrified floor tile glue, K11 polymer waterproof painting, and other fuels, ink, paper making, adhesive, pharmaceutical and chemical industry. . The machine is composed of five parts: hydraulic system, main motor, mixing system, guiding mechanism and electric control box. Each part is compact and reasonable.
Features:
- Stepless speed regulation: electromagnetic speed regulation, frequency conversion speed regulation (for waterborne paint) and explosion proof variable frequency speed regulation (such as oil
paint). It can meet different process requirements, and can choose different speed according to different process stages.
- The dispersed disk is sawtooth, and the liquid material forms a turbulent zone at the 2.5-5mm edge of the dispersed disk. The upper and lower layers are laminar, and the particles are subjected
to strong shear, impact, crushing and dispersion, so as to achieve rapid mixing, dissolving, dispersing and refining. With little air absorption, the material can be dissolved quickly, the
particles will be smaller, and the mixing effect will be good.
- It has many functions, such as hydraulic lifting, 360 degree turning, stepless speed regulation and so on. Hydraulic lift 1300, 360 degrees of rotary function can better meet the multiple use
of one machine, can configure 2-4 containers at the same time, improve work efficiency and reduce labor intensity. This type of machine is especially suitable for mass production.
Parameters:
| Type | XF-1000 |
| Volume | 1000kg |
| Component | Main frame+Controll box+Mix tank |
| Lift method | hydraulic |
| lift distance | 1.30M |
| rotary method | 360degree free |
| motor power | 11KW+0.75KW |
| Main motor | stepless speed regulation |
| Speed range | 80-1250rotary/min |
Annual regular technology training：
1、Latex paint(economic paint, engineering paint, interior wall odorless paint, bamboo charcoal paint and other popular products).
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:1988
- Address:No. 13 nanhu road
- Contact:Sun Jenny
