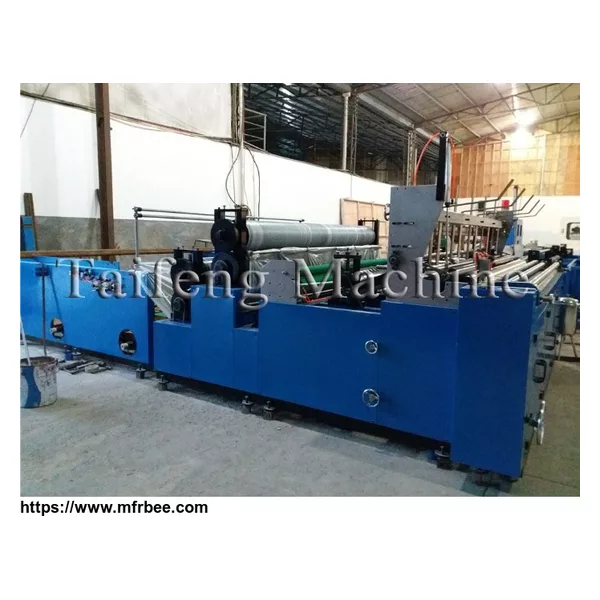

Automatic rewinding and perforating paper machine

FOB Price
USD $23,000.00 / Piece
Place Of Origin
China (Mainland)
Minimum Order
1
Packaging
N/A
Delivery
15 Days

Nikki zhang

Tel/wechat/WhatsApp:+86 13559377117

Q Q:3522924781

E-mail:qztfkj05@qztfkj.com

http://www.qztfkj.com/

http://www.qzyjkj.com/

http://www.balloonmachine1.com/


Automatic rewinding and perforating paper machine

Introduction


Feature and function

1.Using PLC programmable control system

2,The man-machine dialoge control, display the production parametrs on screem

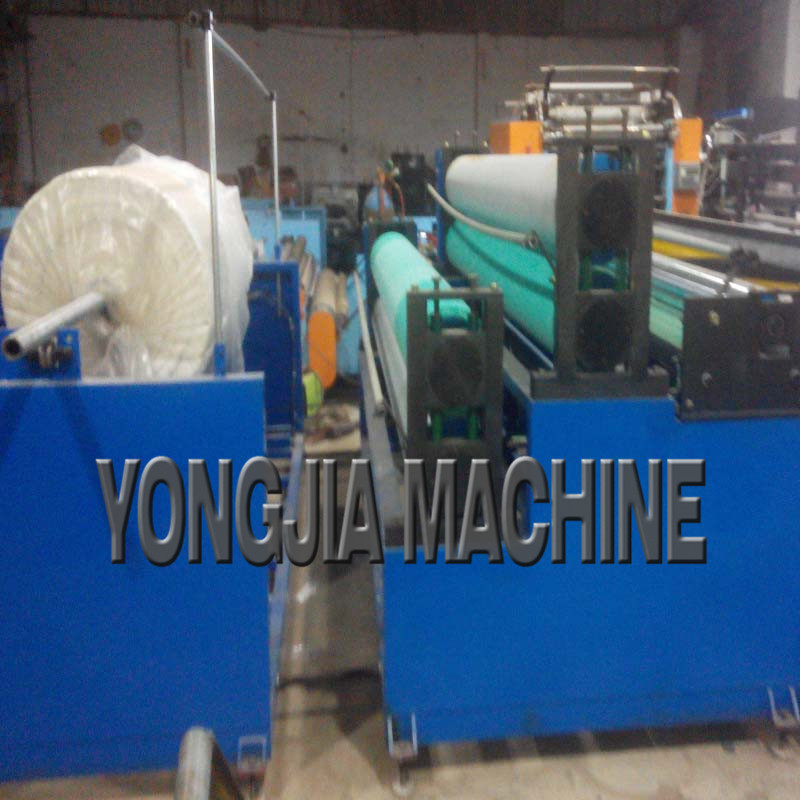

3.Jumbo roll paper is pneumatically loaded on machine, unwinding roll tensioncontrol device.

4.The rewinding process of the product is tight first and loose afterward, with itstension adjustable.

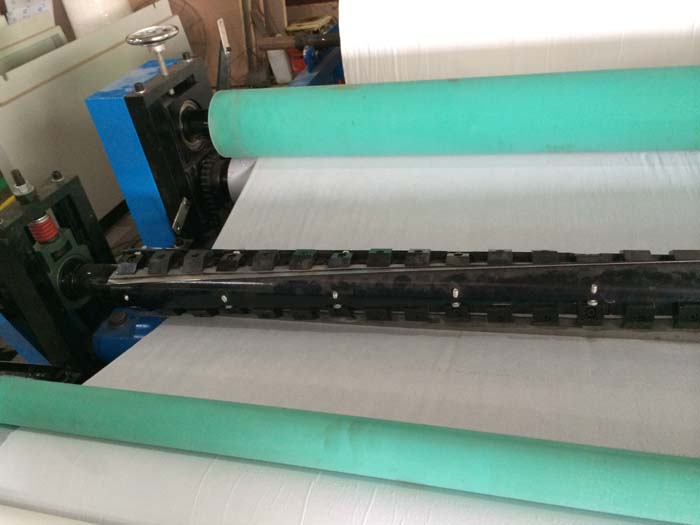

5.Punch length is adjustable.

6.Paper core replacement, glue spraying and paper cutting undergo automaticallyaccording to given sequence.

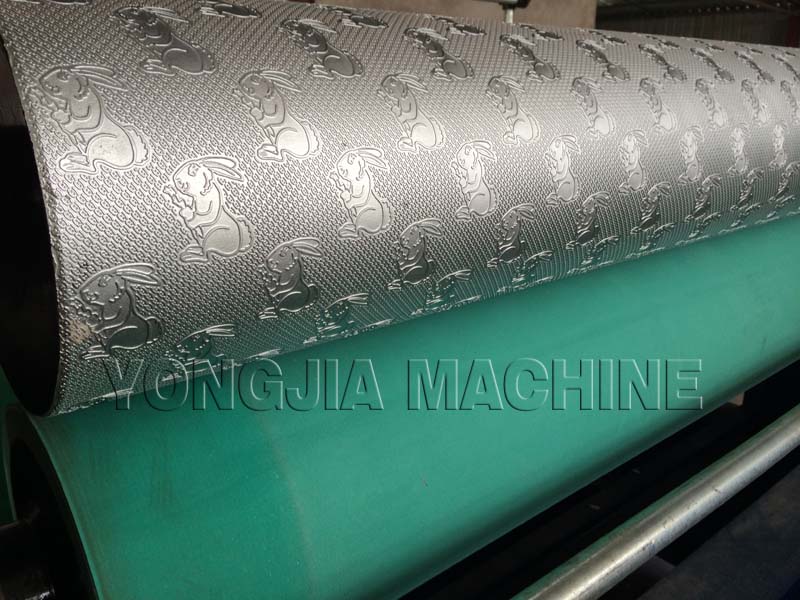

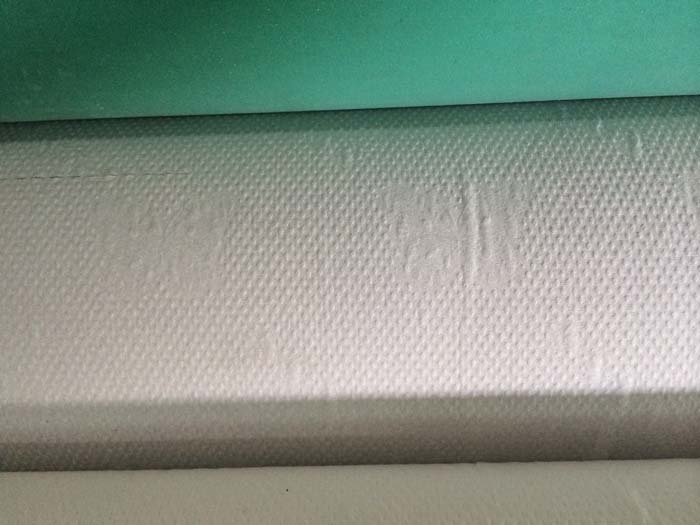

7.Embossing pattern is to be selected by clients.

8.The bearings,,electrical components and synchronous belts are using famous brand

9.According to the requirements of customers can do double embossing roll,and can assorted with rubber composite device to product the kitchen paper as also 1-3color printing equipment.

The technical parameters of fully automatic toilet paper machine


Model 1575 1760 2200 2500 2800
The width of jumbo roll paper 1750 2000 2150 2400 2700
The diameter of Jumbo Roll paper Standard 1100mm,please specify the other sizes
Roll quantity 3a(can specify)
Jumbo Roll paper core diameter 3”(76.2mm)(please specify the other sizes)
Parameter setting PLC
Production Speed 0-180M/MIN
Outside Dia 90-135mm
The finished paper core diameter 25-50mm
Mechanical drive CVT Continuously Variable Transmission
Pneumatic system 3 air compressor,minimum pressure5kg/cm2pa(customer owned)
Installed power 3KW 380V,50HZ
Embossing system Single embossment,double embossment,steel to glue,steel to steel
Dimension 6.6×3.0×1.7 (L x W x H):(m)
Machinery weight 3T
Intervals of punched holes 100mm-120mm(please specify the other sizes)
Paper core diameter size 20-50mm
Roll quantity 1-3a jumbo roll paper can be ordered
Gluing system Convex glue
Decorating adhesive system According to the embossed pattern making(need to order)

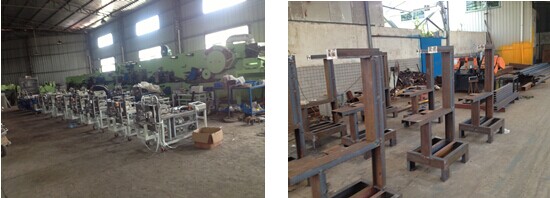

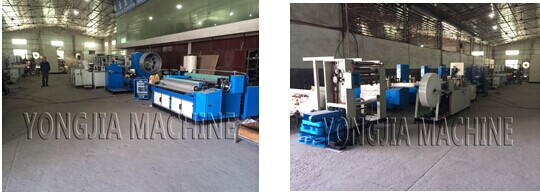

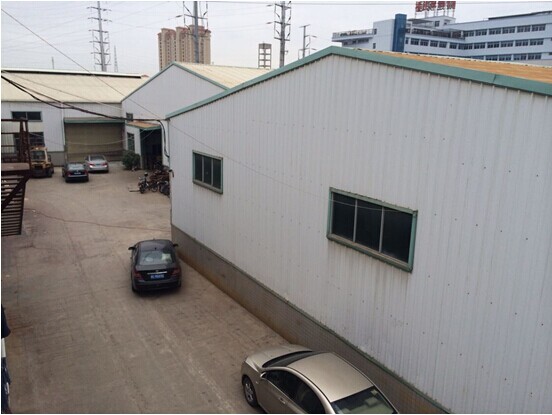

Factory
