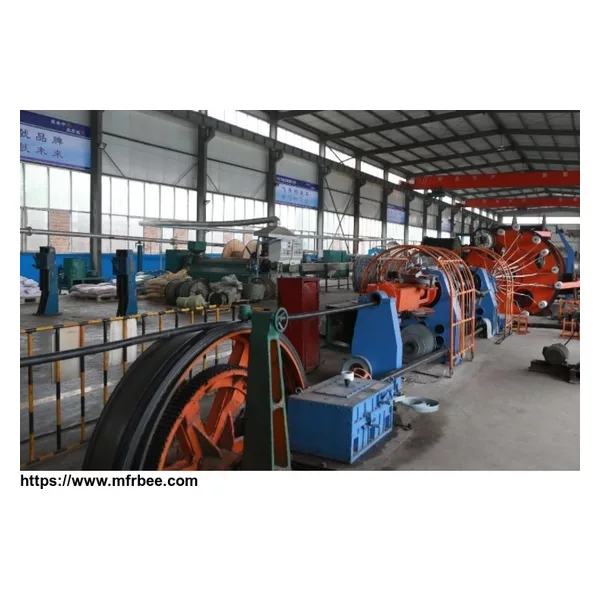

Electrical Cable Manufacturing Machine:500/24+24 Steel Wire Armoring Machine
Product Quick Detail
- FOB Price
- USD $30,000.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- container
- Delivery
- 90 Days
Specifications
he machine is used for single-layer steel armoring or copper wire screening of cables, as well as twisting Al and copper wires, stranding control cables, rubber and insulated cables, also
metal-taping function.
Main Features
1.The main shaft is made of a seamless steel tube, supported by double-row roller on both ends.
2.The back-twisting is completed by planetary gears which are bevel gears subject to heat treatment and have good resistance to abrasion and continuous motions.
3.The dog pin for the bobbin has spring inside, easy for loading and unloading the bobbin.
Main Technical Data
|
Single wire dia. (mm)
|
Φ1~4.5
|
|
Dia. before armoring (mm)
|
Φ≤130
|
|
Cage rotation speed (r/min)
|
20~45
|
|
Stranding pitch (mm)
|
78~1415
|
|
Taping rotation speed (r/min)
|
127-327
|
|
Taping pitch (mm)
|
9.8~182.7
|
|
Line speed (m/min)
|
3.56~27.1
|
|
Payoff bobbin (mm)
|
PN3150
|
|
Takeup bobbin (mm)
|
PN3150
|
|
Caterpillar capstan
|
5000kg
|
|
Power of main motor (kw)
|
90
|
- Country: China (Mainland)
- Business Type: cable stranding machine
- Market:GLOBAL MARKET
- Founded Year:2020
- Address:YANGMING INDUSTRY ZONE, YUYAO,ZHEJIANG ,CHINA
- Contact:Max Xu
