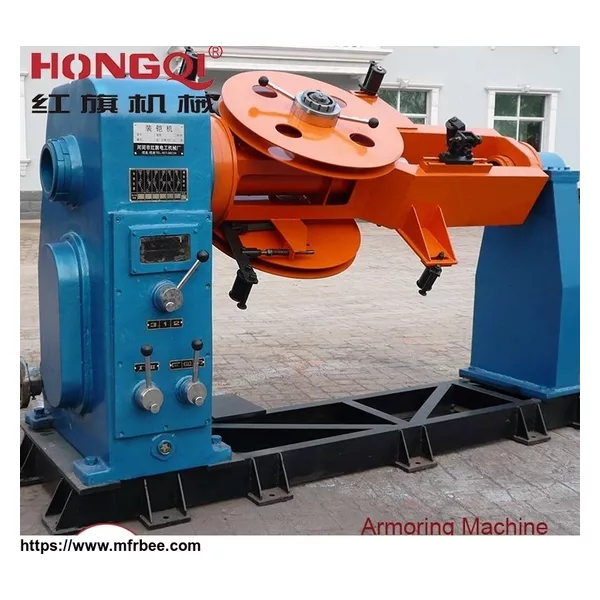

24+24+24+24,48+48 High Speed Steel Wire Armoring Machine
Product Quick Detail
- FOB Price
- USD $30,000.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- container
- Delivery
- 90Days
Specifications
Technical Parameter
| Description | 315mm | 400mm/12+18+24 | 400mm/36+36 | 500mm/48+48 |
| Single wire Dia. (mm) | Φ0.8-Φ1.2 | Φ0.8-Φ2.0 | Φ0.8-Φ3.5 | |
| Stranding Dia. (mm) | ≤Φ10 | ≤Φ55 | ≤Φ100 | ≤Φ130 |
| Cage rotation (rpm) | 199.4 | 118 | 44 | 38 |
| Stranding pitch (mm) | 100-300 | 63-1067 | 88-1499 | 116-2019 |
| Capstan wheel (mm) | Φ1000 | Φ2000 | Φ2500 | Φ2500 |
| Capstan linear speed (m/mim) | 3-30 | 4.85-35.6 | 3.8-28.2 | 4.4-32.3 |
| Main motor (KW) | 22 | 45 | 55 | 75 |
| Bobbin in the cage | PN315 | PN400/PND400 | PN400/PND400 | PN500/PND500 |
| Central pay off bobbin | PN630/PN1250 | PN1250/PN2000 | PN1600/PN2500 | PN2500/PN4200 |
| Take up bobbin | PN1000/PN1600 | PN1600/PN2500 | PN2000/PN3150 | PN2500/PN4200 |
Packaging & Delivery
- Packaging Details
-
2. All the packaging should be clearly marked with carton mark with package number, gross and net weight, product name, size, the lifting position and note logo.\" style=\"box-sizing: content-box; margin-top: 0px; margin-right: 0px; margin-bottom: 0px; padding: 4px 0px; border: 0px; font-style: inherit; font-variant: inherit; font-weight: inherit; font-stretch: inherit; font-size: inherit; line-height: inherit; font-family: inherit; vertical-align: baseline; overflow: hidden; white-space: nowrap; text-overflow: ellipsis;\">1. With export standard packing.
2. All the packaging should be clearly marked with carton mark with package number, gross and net weight, product name, size, the lifting position and note logo.
- Delivery Time
- Shipped in 60 days after payment
