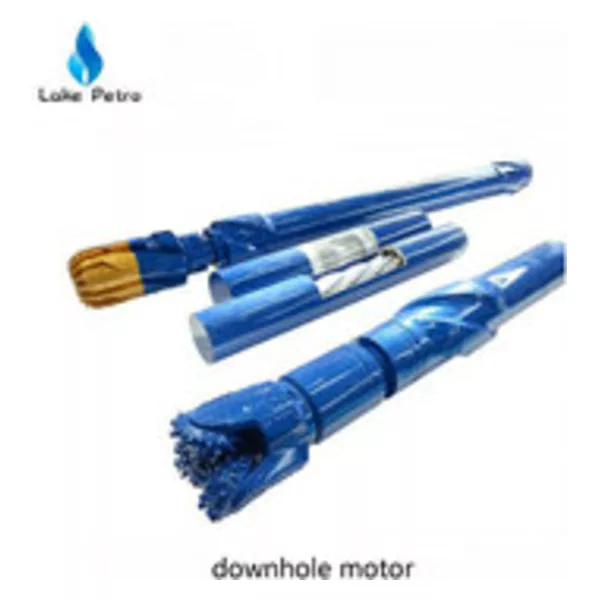

Downhole Motor for Oilfield Drilling Tools
Main Features:
The downhole motor is a kind of mud-driving down hole drilling tool. The mud from the mud pump goes through the bypass valve and enters the motor. At the gate of the motor it forms pressure difference to rotate the motor’s rotator and to pass the drilling rigs through the cardan and transmission shaft. The performance of the downhole motor is mainly determined by the parameters of the motor.
Product Description Drilling Motoris a kind of downhole power frilling tools by mud. The mud output by the mud pump, will enter the motor through the bypass valve, and a certain pressure difference will be formed at the inlet and outlet of motor, to push the rotor of motor to ...
Lifting sub is the special tools for lifting of the drill tools in petroleum, natural gas industry and geologic exploration. There\'re two types for drill tool lifting sub in structure: type A or B. Type A lift sub is with 18 degree shoulder, and type B is with 90 degree ...
Side Entry subs are manufactured from AISI 4145 alloy steel. The side entry sub is manufactured with box by pin connections to match the drill pipe by a welded 2\" 1502 union side outlet. When ordering, please specify: Overall length Sub OD Sub Bore Connection size Product Name ...
Saver Sub is used to extend the life of the Kelly by taking the connection wear each time it is make-up to a drill stem component. The saver sub connection is sacrificed because it can be easily repaired or inexpensively replaced. The saver sub can be equipped with a rubber ...
Casing centralizer is a device used to place the casing at the center of the hole so as to improve the efficiency of the cementing. It is an important device because if the casing centralizer touches the formation at any part of the hole, then cement slurry does not pass ...
1. Product Description: A drill bit is a device attached to the end of the drill string that breaks apart, cuts or crushes the rock formations when drilling a wellbore, such as those drilled to extract water, gas, or oil. The drill bit is hollow and has jets to allow for the ...
1. Product Description: The Lake Drilling Motor is a powerful and reliable positive displacement motor. The motor generates an optimum balance of rotational speed and high torque to drive a variety of drill bits at speeds that maximize tool life and performance. Lake Motors ...
1. ADVANTAGES OF DOWNHOLE MOTOR Increased rate of penetration. Better hole deviation control. Reduction in drill string failure rate. Reduction in wear and tear of the swivel, Kelly, and rotary drives. Reduction in fuel cost, since compared to rotary drilling, less energy is ...
Usage It is one kind of positive displacement downhole motor, with working principle is to convert the high pressure fluid power of mud into mechanical energy for bit rotation. It is widely used in oil field and mine directional well and horizontal well, cluster Wells and ...
diameter:5\" length:5.6m weight:360kg Curvature:1.75° application: vertical drilling and horizontal directional ...
