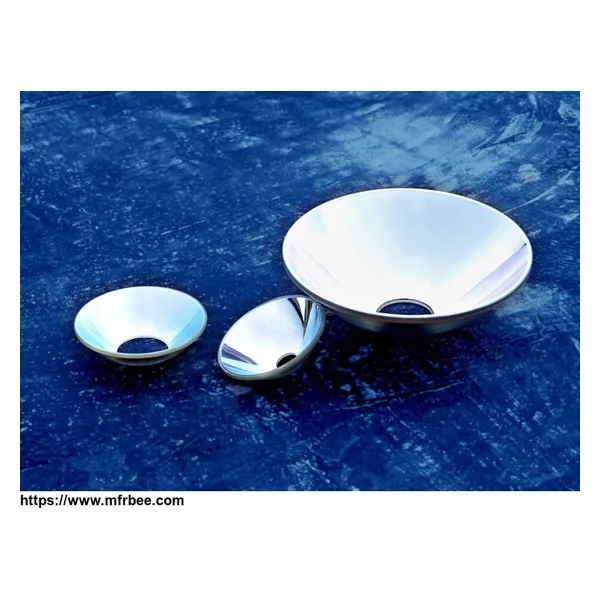

Ellipsoidal UV Reflector
Product Quick Detail
- FOB Price
- USD $10.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- carton
- Delivery
- 15 Days
Specifications
Efficiently collect and concentrate light emitted from a lamp and separate available UV light only.
Ellipsoidal reflectors have two conjugate foci. When a light source is placed at the focal point at that end, all rays of the light that strike the reflector will be diverted through the second focal point. The result is that an enormous percentage of the light from the source is directed in a manner that makes it easily usable.
Ellipsoidal reflectors have two conjugate foci. When a light source is placed at the focal point at that end, all rays of the light that strike the reflector will be diverted through the second focal point. The result is that an enormous percentage of the light from the source is directed in a manner that makes it easily usable.
The applications are including: Mask aligner and mask alignment system, curing machine, UV curing process.
Specifications
| Substrate | glass | ||
| Exposure to UV Curing |
the reflectance of line I, h and g are >93%; the reflectance of wavelength which over 500nm are <15%. |
||
| Surface Precision | the reflecting surface precision of aspheric reflector could up to 0.05mm. | ||
| Coating Layer's Max. Working Tem. | 350ยบ C | ||
| Model | D(mm) | d(mm) | H(mm) |
| E355 | 355.6 | 90 | 159 |
| E162 | 162 | 40 | 78 |
| E113 | 113 | 26 | 50 |
| E110 | 110 | 16 | 50 |
| E89 | 89 | 15 | 67 |
|
Paraboloidal UV Reflector P65*70 |
65*70 | 14 |
52 |
