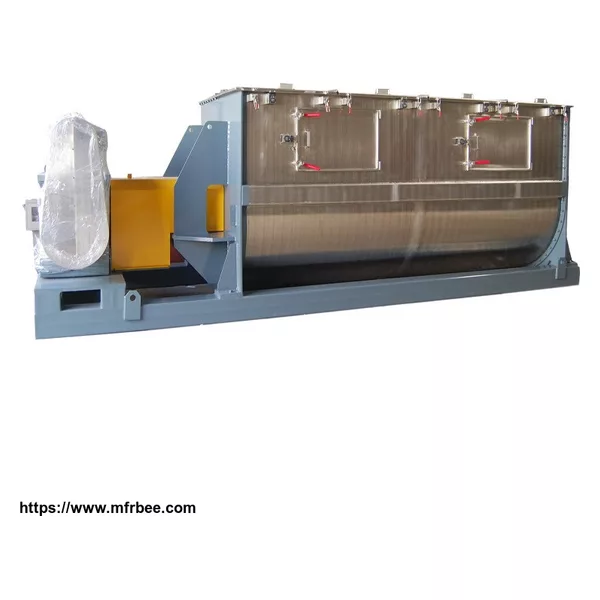

Horizontal Pigment powder/pesticide powder ribbon blender machine

LHY horizontal ribbon blender machine is widely used in chemical, pharmaceuticals, food, and construction line. It can be used to mix powder with powder, powder with liquid, and powder with granule.

Under the driven of motor, the double ribbon agitator mix the material quickly. This ribbon blender is characterized by high mixing effect, large productivity, and a very low failure rate. Since it is a batch type mixer, customer should choose the model according to the output per batch.

Working principle:

Horizontal ribbon blender machine is mainly combined with mixing barrel, agitator, driven unit.Untwist double ribbon are swirled with the main shaft in the U shape barrel. The outer ribbon push the material from the two ends to the centre, inner ribbon push the material from center to the two ends.Thus to achieve material convention

The discharging port is set in the bottom centre, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.

Standard configuration:

1. Drive Unit: Cycloid reducer or gear reducer

2. Motor brand: Siemens (made in China)

3. Gear box brand: Chinese Famous brand

4. Bearings: Chinese Famous brand

5. Discharging valve: pneumatic flap valve (no dead angle when mixing).

6. Main Shaft Seal

Air-purged seal and stuffing seal for powder material

Mechanical seal for liquid material

7. Voltage and Hz

380V 3Phases 50hz or in accordance with it in the using place
