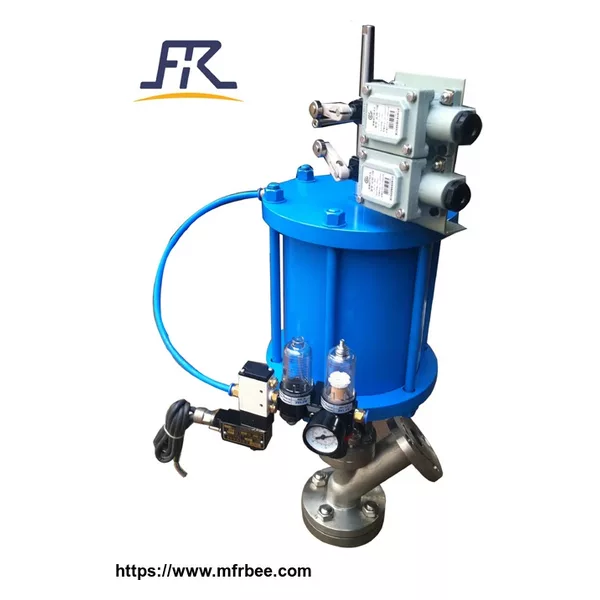

FREE-Valve’sPneumatic flush bottom valvesare designed for the convenient and fastdischargingthe material or samplesfromthe bottom of the reactor,drain or feed vessel .Thevalvecan be welded or installed on thevesselthrough the flange at the bottom of the valve,tankbottomanglevalvesare most commonlyinstalledonfeeding of vesselsordead space free draining and pipelines.
Features
1.ThisRangeof manual control tank bottom angle valve is manufactured in integrated structure.
2.Structures with disc opening into the tank and disc opening into the valve.
3.Available with 45°,50°,90°degree outlet angle in the body.
4.A rotation-resistant device is set up to ensure that the valve stem only has straight line motions and no rotation.
5.The protection plate makes for the outstanding erosion resistance and corrosion resistance of the valve body.
6.The sealing surface of the valve seat and the valve disc is made of over laying cemented carbide or painted with tungsten carbide. The auxiliary line sealing guarantee the reliability of the sealing performance.
7.Easy to realize the remote control or the local control with solenoid valve.
Technical Parameters
Flange connection | ASME B16.5,GB/T9113 |
Design standard | ASME B16.34 |
PressureRange | Class150~Class300 |
SizeRange | DN50~DN350, NPS2~NPS14 |
Material | carbon steel, stainless steel |
Connection type | Flange |
Working Temperature | ≤425℃ |
Operating Type | Pneumatic, manual,electric |
Sealing surface material | Alloy |
Pressure test | GB/T13927, API598 |
Applications
FREE-Valve’sPneumatic flush bottom valves are widely used in the petrochemical industry,alumina industry,steel industry,polymer,miningindustry,thepharmaceutical andfinechemicals, andmineralprocessing industries.
