Anping Tenglu Metal Wire Mesh Co.,LTD

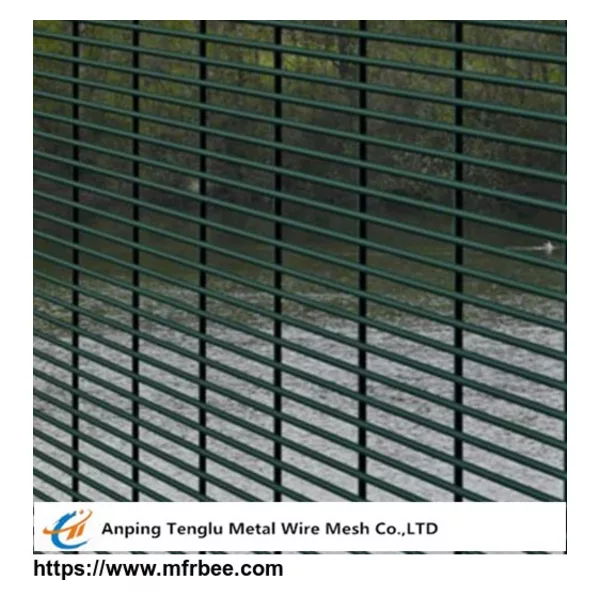

358 Security Mesh Fence
•Product Description:
358 mesh fence is featured by the design that combines the high security and perfect aesthetic effect. Panel sections are welded wire mesh with small rectangular openings 76.2 mmX12.7 mm made from 4 mm galfan steel wires, and welded well at each intersection, then PVC powder coating with green RAL 6005 or black RAL 9005 color, which provides a protective anti-corrosion property for 10 years. The high security 358 welded mesh fencing is extremely difficult to penetrate and difficult to attack by using conventional tools. Because of the anti-climbing and anti-cutting features, 358 welded mesh security fencing is also called anti climb fence. It is usually used for fencing where require high levels of security, such as airport, prison and military establishments, so 358 mesh is also called prison fencing. This kind of welded panel width is 2515 mm and height from 2007 mm to 3302 mm. Several panels can be installed on the top of each other, thus the 358 mesh fencing can achieve a total height of 6300 mm.
•Materials:steel wire
•Feature:
Difficult to climb and cut.
Provides aesthetic appeal and clear line of sight from any angle.
Minimum visual impact on the surrounding environment.
Available in powder coated finish.
•Application:
Ideal for sensitive areas requiring the maximum degree of security, 358 closed space welded mesh is a product that can be used across all market spectrum such as;
Prisons,Substations,Ports,Schools,Water Reservoirs,Commercial Sites etc.
•Packaging :Wooden box
•Our Service:
Materials certification
Customized size
•Specifications:
Height (mm) | Post Centers (mm) | Post Dimensions (mm) | Overall Post Length (mm) |
1270 | 2440 | 80 x 60 | 1900 |
2134 | 2440 | 80 x 60 | 2900 |
2440 | 2440 | 80 x 60 | 3300 |
3000 | 2440 | 80 x 60 | 3800 |
4200 | 2440 | 120 x 120 square | 5100 |
5210 | 2440 | 150 x 150 | 6200 |
