Mesh categories
Categories | Material | Wire diameter range | Pore size range | Type of welding or preparation |

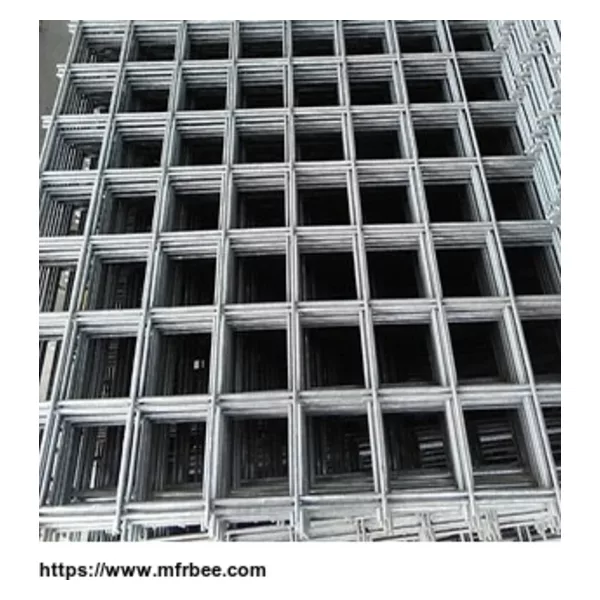

Welded wire mesh |
Black iron wire
Electro welded wire Hot dipped wire |
2mm-5mm | 3cm above |
Electroplating after black wire welding
Hot plate after black wire welding Black wire is sprayed after welding Plastic dipping |
Shule board mesh |
Change the drawing
Galvanized wire |
1.6mm-1.8mm | 4cm-5cm |
|
Steel mesh piece | Screw-thread steel | 5mm above | 10cm above |
|
Hook flower mesh |
Black wire
Electro welded wire Hot dipped wire Plastic coated wire |
2.0mm-4.0mm | 5cm | Common type、screw type edge、housing edge type |
Gabion box(hexagonal wire netting) |
Plastic coated wire
Hotdip galvanized wire Electric glavanized wire Gore all silk |
2.0mm-3.7mm |
6*8 8*10 10*12
10*15 12*15 15*18 16*18 16*20 17*19 18*20 21*24 |
|
Chemical component
Q235: 0.12 ≤ C ≤ 0.20 ; Si ≤ 0.30 ; 0.30 ≤ Mn ≤ 0.70 ; S ≤ 0.45 ; P ≤ 0.045
Q345: 0.12 ≤ C ≤ 0.20 ; 0.20 ≤ Si ≤ 0.55 ; 0.20 ≤ Mn ≤ 0.60; S ≤ 0.045 ;
P ≤ 0.045
Mechanical property
Q235 yield strength: 235MPa, 24kg/mm2; tensile strength: 375-460MPa, 38-47kg/mm2 ; elongation:26min
Q345 yield strength: 345MPa, 35kg/mm2; tensile strength: 510-600MPa, 51.60kg/mm2 ; elongation:22min
Tel:+86-182 3676 6038
Fax:+86-0371-6053 5957
E-mail:zxminesupport@zxsteelgroup.com
