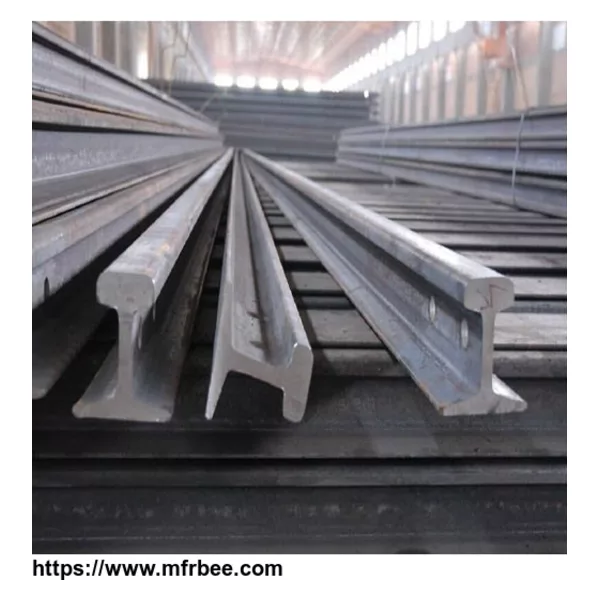

8kg light rail
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 5 tons
- Packaging
- Standard packaging
- Delivery
- 1-7 working days after the deal
Specifications
|
Light
Steel Rail |
size | Rail Height | Bottom Width | Head Width | Web Thickness |
Weight
kg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 | |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
| 24kg | 107 | 92 | 51 | 10.9 | 24.95 | |
| 30kg | 107.95 | 107.95 | 60.33 | 12.3 | 30.1 |
Material: Q235B/55Q
Standard: GB11264-89, YB222-63
Length: 6-12mMain Function:
Light rail is mainly orient ed and load bearing, it is used with the track wheel, to support the weight and change the direction of the cart.
Main Application:
The light rail is mainly used for the laying of temporary transportation lines and light locomotive lines for forest areas, mining areas, factories and construction sites.
If you are intrested in our products please leave your message or contact us.
Our telephone number is +86-182 3676 6038
Our email address is zxsteel@zxsteelgroup.com
