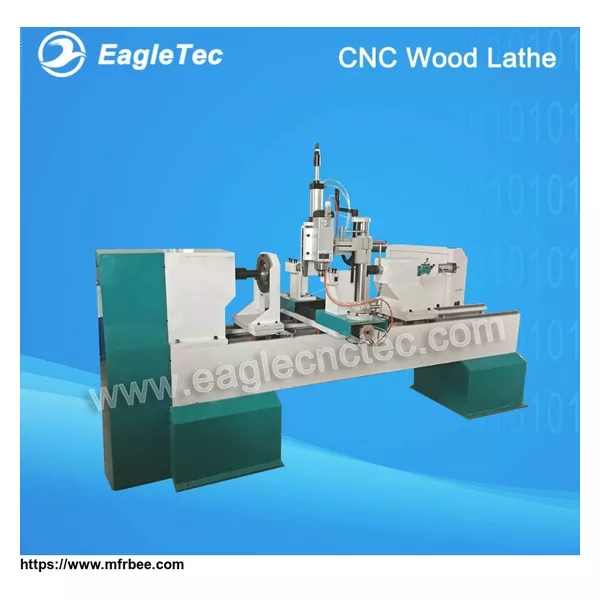

Programmable Wood Lathe For Stair Railing

Programmable Wood Lathe For Stair Railing

from www.eaglecnctec.com

Jinan EagleTec CNC Machinery Co.,Ltd.

Features

There aretwo versionson configuration of this programmable wood lathe, and the only difference between the two is the main turning motor.High configurationis using servo motor; whilestandard versionis using three-phase asynchronous motor. With servo motor, you can do turn-milling, broaching, turn-broaching, and embossment carving on column materials; with three-phase asynchronous motor, you just can do turn-milling, broaching and turn-broaching, can not do embossment carving on column. Please see photo below for better understand.

Design of twowood lathe chisels, one for rouging, the other works asfinishing tool.

Theprogrammable wood lathebody isfully casted by ironto meet the high rigidity performance which is necessary for wood turning jobs.

Take Richauto DSP A132 as the lathe cnc controller, which canread and run DXF file directlyand no need to do any file format transfer, user-friendly. This means that, you can take your file to the lathe and machining as soon as it is finished it in your AutoCAD software.

Automatic Wood LatheApplicable Industry

It is applied to produce wooden stair balustrade, handrail, stair railing, newel post, roman pillars, bed rails, column and more.

Automatic CNC Wood Lathe Technical Parameter

Brand | EagleTec

Model Number | EA-TL1530ST3

Construction| one rotary, two cutters, adjustable gymbal & spindle

Spindle| 3.5kw, air cooled, ER25 collet, 0 ~ 18000 rpm

Turning Motor| servo motor (high version), three-phase asynchronous motor (standard version)

Rotary Feeding Range | 0~3000 rpm

Max. Simultaneous Axis Quantity| Three

Machining Capacity| turn-milling, broaching, turn-broaching (high & standard version); embossment carving on column (high version only)

Lathe Controller| Richauto DSP A132 (3 axis controller), read DXF file directly

Communication Code | DXF, G code

Axis Motion Motor | Stepper

Driver| YAKO YKA2811MA – 3PCS

Working Diameter Range | 20mm ~ 300mm

Working Length Range | 100 ~ 1500mm

Air Pressure Requirement | 0.6~0.8 Mpa

Inverter| Fuling brand - 2PCS

Power Supply Requirement | AC380V, 3Ph 4 Wires

Electric Frequency Requirement | 50Hz

Lathe Weight | 1500KGS

Packing Dimension | 3150x1220x1680mm (6.46CBM)

To get the latest programmable wood lathe price, pleaseinquire now.
