Automatic bag given doypack packing machine filling sealing equipment

Main use:

It is widely used for the automatic packaging of seasoning materials like Relish, refined monosodium glutamate, seeds, sugar, chicken essence, fried food,

gum, pistachios, melon seeds, pet food, snack food, etc.

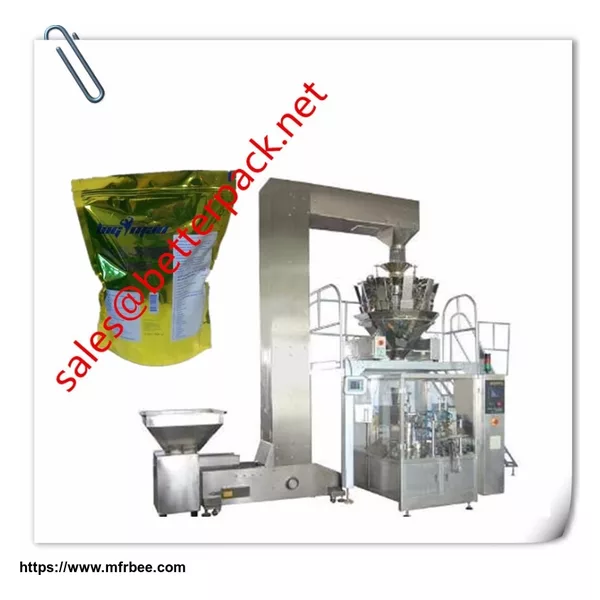

The whole system include

---Z shape bucket elevator

---10 head combination weigher

---rotary bag given packing machine

---output conveyor belt

Working principle:

setp 1 Bag feeding

Feed many pouches or bags in the bag magazine, our main bag magazine can move up and down, you can feed bags very easily when it moved down, and when it moved up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.

step 2 Date Printing (option)

step 3 Opening

To open stand (flat) pouches from top and bottom with two sets vacuum caps.

step 4 Filling

Measured its weight or volume by scales.

There are an opening detection device insert into the open bag or pouch to expanding it and detect if it is open or not.

No open no filling no sealing

step5 Sealing

To seal the pouch or bag mouth with a couple of heat sealing air bar, the sealing pattern you can option, net or straight lines

Step 6 Forming and output

To make the sealing stable and preventing from wrinkling with a couple of cold press, then output the finished production automatically.

Specifications:

1) Scaling scope: 5 - 1,500g

2) The styles of packaging bag: portable bags, hand luggage, zipper bags, 4-side

edging bags, 3-side edging bags, paper bags.

3) Speed: 60packs/min (max.)

4) Size of bag: W:200-300mm L:200-450mm/ W:150-260mm L:150-350mm/ W:100-210mm L:100-350mm

5) Total power: 3.5kW, 220/380V,50-60Hz

6) Weight accuracy: 1g

7) Air source: 0.6m3/min
