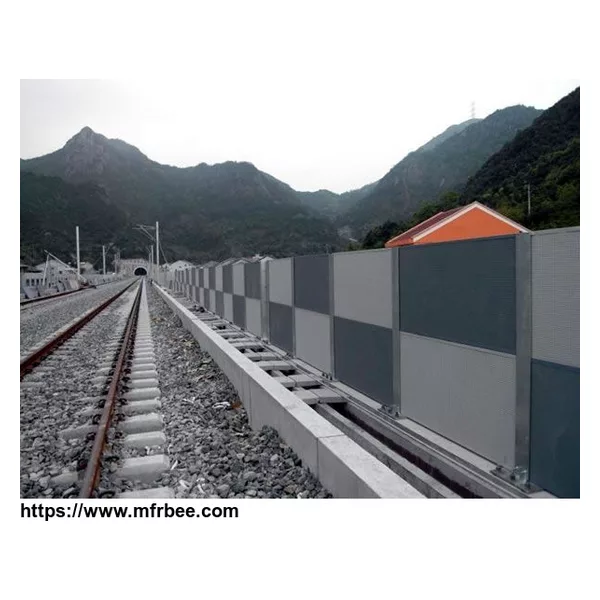

Brief Description
These railway noise barrier are designed, manufactured & tested all in house to our rigid engineering and quality standards.
Environmentally sound as the absorption core is made from recycled PET plastic.
Railway noise barrier composition: perforated outer skin with a ploymax internal panel core material, sold rear face,H post.
The outer metal skin has a nominal Rw rating of 26 to 28 which may increase slightly with the inner perforated lining and the insulation material.
The 23% open perforated metal facing as detailed below is unlikely to significantly degrade the Polymax core performance and hence noise barrier provides a high level of sound absorption (estimated at 0.90 or greater).
The overall wall rating is hence calculated to be Rw 28 to 30 with an NRC rating of 0.9 to 1.0
Railway noise/sound barrier Specification :
Name | Railway noise/sound barrier |
Length | ≥0.5m |
Hight | Customed |
Thickness (unit piece) | ≥50mm |
Material | aluminum ,galvanized steel sheet ,etc |
Hole Ratio | Customed |
Hole Diameter | Customed |
Pitch of Holes | Customed |
Brace | 100*100*8mm and offer customed |
Flange plate | customed |
Packing | PE film and Whaterproof material |
RW | ≥35dB |
NRC | ≥0.84 |
Post | H steel post |
Post size | Depend on the size |
