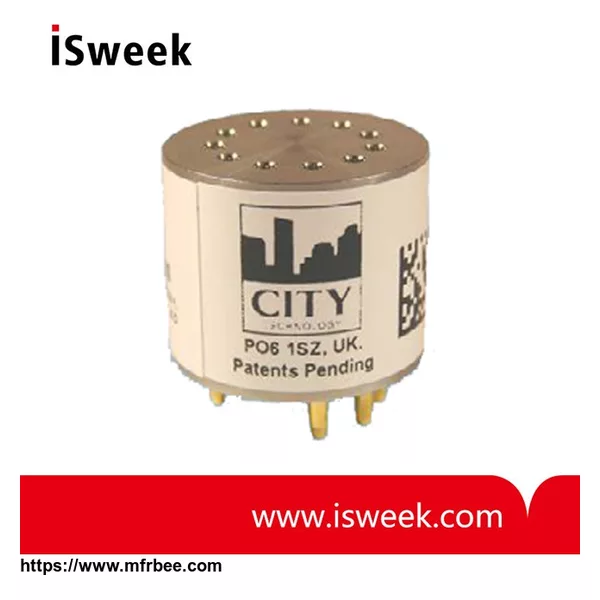

IRceL CH4 NDIR Methane (CH4) Gas Sensor
Product Quick Detail
- Minimum Order
- 1
- Brand Name
- City
- Place Of Origin
- United Kingdom
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
IRceL CH4 NDIR CH4 Sensor
IRceL CH4 NDIR CH4 Sensor Key Features & Benefits:
• Integrated thermistor for accurate temperature compensation
• EEPROM programmed with sensor specfic performance characteristics
• Compact Size
IRceL CH4 NDIR CH4 Sensor Technical Specifications
|
MEASUREMENT |
|
|
Operating Principle |
Non-Dispersive Infra-Red (NDIR) |
|
Measurement Range |
0-5% vol. Methane |
|
Accuracy (-20°C to +50°C) |
Within ± (0.1% vol CH 4 + 4% of concentration) |
|
Response Time (T90) |
< 35 Seconds |
|
Repeatability: Zero 5% CH |
< ±0.015% CH 4 < ±0.05% CH |
|
Linearity |
See Operating Principles OP17 |
|
|
|
|
ELECTRICAL |
|
|
Supply Voltage |
3-5 VDC, 3.3 V to utilise EEPROM calibration |
|
Power Consumption |
<100 mW at 3.3 V |
|
Recommended Lamp Frequency |
2 Hz, 50% duty cycle |
|
Minimum Resolution |
0.03% CH 4 at zero 0.1% CH 4 at range |
|
Warm-up Time |
< 10 Seconds |
|
|
|
|
MECHANICAL |
|
|
Housing Material |
Stainless Steel (see back page) |
|
Weight |
23 g |
|
Orientation |
Any |
|
|
|
|
ENVIRONMENTAL |
|
|
Typical Applications |
General Purpose Portable Fixed Methane Detection |
|
Operating Temperature Range |
-20°C to +50°C |
|
Operating Humidity Range |
0 to 99% RH (non-condensing) |
|
Operating Pressure Range |
700 to 1300 mBar with compensation |
|
|
|
|
LIFETIME |
|
|
Long Term Zero Drift |
< ±0.05% CH 4 per month |
|
Recommended Storage Temp |
-20°C to +50°C |
|
MTBF |
> 5 years |
|
Standard Warranty |
12 months from date of despatch |
Connection should be made via PCB sockets only. Soldering to the pins will seriously damage your sensor.
All performance data is based on conditions at 20°C, 50%RH and 1013mBar, using City Technology recommended circuitry. For sensor performance data under other conditions, refer to the Characterisation Note and Operating Principles.
