Cheap Molded Wood Pallet Machine from China

Minimum Order
1
Place Of Origin
China
Price70000
80000
Packaging
N/A
Delivery
15 Days

Introduction of molded wood pallet machine

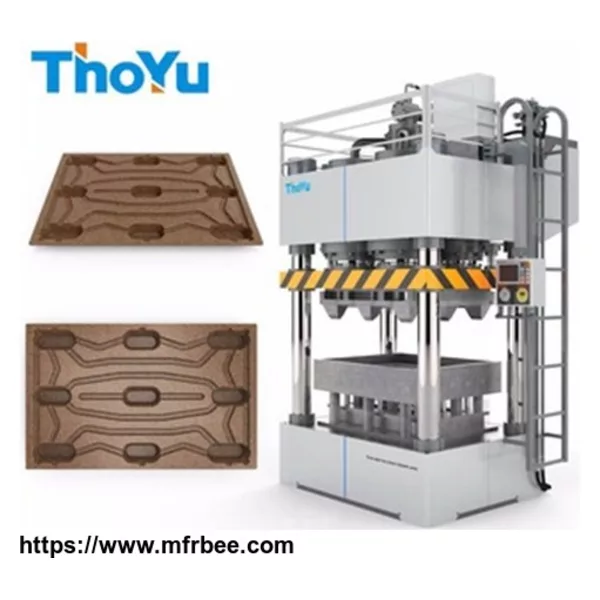

Molded wood pallet machine is the new type of one time forming machine, also called wood pallet making machine, and wood pallet molding machine.
Wood pallet machine meets the requirement of environmental protection, which can help to recycle raw materials. The raw materials are spreading all over the world, such as wood chips, waste wood pallets, waste wood, timbers, kraft paper, straw, bamboo, even if plastic etc.
Wood pallet machine can help to solve the problem of the environment and also make profits.


Advantages of molded wood pallet machine

High precision,
High durability,
High automation.
Better molds design.

We tested and pushed down many solutions and patterns and finally adopt the three-beam four-column structure of wood pallet machine.
  1. The four-column guide device assures the precision of closing moulds and the stability of pressing during the working of press machine.
  2. The upper mold is integrated with the “Sliding beam”, which doubles the strength, stability and precision.
  3. High precision makes pallets surface smooth without burrs.
  4. Changing the waste into treasure.

molded wood pallet machine

Molded wood pallet machine

Model TY-1000 TY-1200
Voltage 220 V/380 V, 50 Hz, three-phase 220 V/380 V, 50 Hz, three-phase
Capacity 180 pieces/day (24 hours) 180 pieces/day (24 hours)
Power 18.5 kW 18.5 kW
Hydraulic cylinder diameter 350 mm 380 mm
Hydraulic cylinder quantity 4 pieces 4 pieces
Pressure 0–1000 tons (adjustable) 0–1200 tons (adjustable)
Shaping cycle 350 seconds 350 seconds
Weight 22 tons 22 tons
Dimension 2000*1400*3500 mm 2000*1400*3500 mm
Remarks: it includes one set normal mould along with one set machine.

The flow chart of presswood pallet production line

  1. Chipping machine. Wood chipper machine can chip raw materials into wood chips, about 5 cm in length, 3 cm in width, and 1 cm in thickness, if the raw materials are large size.
  2. Crusher machine. The bigger size wood chips will be crushed again in order to get better raw materials to make the pallet. The size of the wood chips after crush is about 5 cm in length, 3 mm in width, 1 mm in thickness.
  3. Wood drying machine. In order to get better pallet, the moisture content of the raw materials should be about 5%. That means a better drying machine is necessary. The temperature of the output port should reach 80-100 ℃.
  4. Glue mixing machine. The ratio of raw materials to the glue is 85:15.
  5. Press wood pallet machine
Raw materials for molded wood pallet machine:
  1. Waste wood, scrap of the wood, sawdust wood chips, wood shaving, wood chips, big chips, raw wood, burned forest, logs, wood board, branches, timber, wood flakes, and waste pallets, and so on.
  2. Contenting rich fiber also can be used to produce the pallets, such as straw, waste kraft paper, bamboo, palm trees, coconut, softwood, wheat straw, bagasse, and miscanthus, and so on.
Raw materials of wood pallet machine are spreading all over the world, which lower the investment of wood pallet machine.

Final products


Final compressed wood pallet features

  1. Low moisture content and constant intensity and rigidity. Wood pallet is non-hygroscopic and no deformation in the course.
  2. Stable dimension and no distortion and warping.
  3. High precision size and light weight. It is specifically designed reinforcing rib that ensures the intensity and production accuracy.
  4. Rounded design to prevent goods damage in the packaging and transportation process.
  5. Stacking type. A lot of pallets can be stacked together and the height of the 50 pieces of pallets is about 7 feet.
  6. Free fumigation and popular in the import and export transportation.
