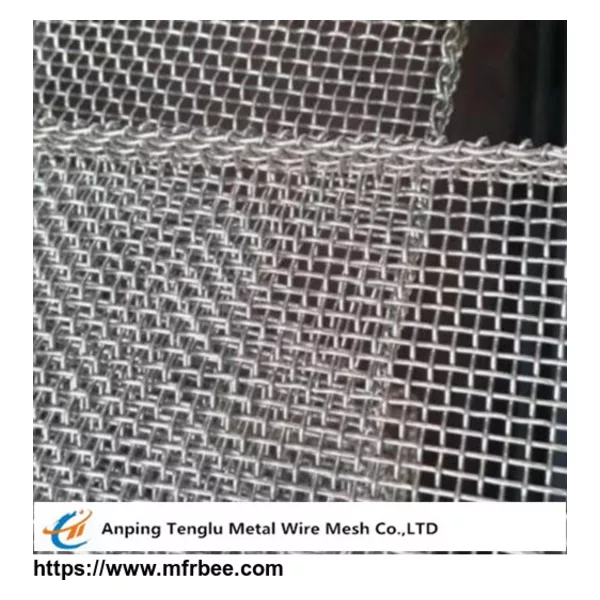

310 Stainless Steel Wire Mesh Screen
•Product Description:
Often referred to as “25-20” stainless, 310 SS wire mesh is suited for applications requiring high strength and excellent oxidation resistance. The maximum safe temperature is about 2000°F, but is successfully used up to 2100°F under certain conditions. Preforms well under intermittent heating and cooling. Type 310 also referred to as T-310 or T310 is nonmagnetic when annealed or cold worked. Well suited where a combination of strength, toughness, corrosion and oxidation-resistance is essential.
310 stainless steel wire mesh/screen is austenitic material used for high-temperature applications. The high chromium and nickel contents give the steel excellent oxidation resistance as well as high strength at high temperatures. This grade is also very ductile, and has good weldability enabling its widespread usage in many applications.
Grade 310S stainless steel wire mesh/screen is the low carbon version of Grade 310 and is suggested for applications where sensitization, and subsequent corrosion by high temperature gases or condensates during shutdown may become problem.
•Materials:Stainless Steel 310/310S
•Feature:
310S stainless steel(2520), due to high content of Ni and Cr, it is with good oxidation resistance, corrosion resistance, acid and alkali resistance, high temperature resistance
•Application:
310 stainless steel wire mesh screen is often used for welding rod, furnace parts, aircraft and jet engine parts, oil refinery and chemical processing equipment, heat exchangers and strainers.
