Specifications

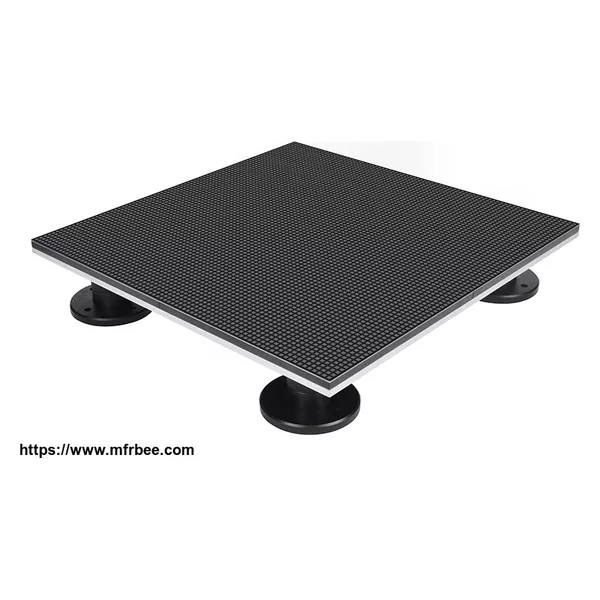

LED Dance Floor specifications
|
||
Model Name
|
D6
|
D4
|
Pixel Pitch
|
6.25mm
|
4.62mm
|
Pixel LED
|
SMD2727 (Nationstar)
|
SMD1921(Nationstar)
|
Panel Resolution
|
80*80
|
108*108
|
Scan Mode
|
1/5
|
1/9
|
Panel Material
|
aluminum
|
|
Panel Weight
|
11 kg / 24.24 lbs
|
|
Brightness
|
1800 nits - 5000 nits
|
|
IP Rating(Front/Rear)
|
IP65
|
|
Refresh Rate
|
2000Hz
|
|
Loading Ability
|
1000 kg/sqm; 2200 lbs/㎡
|
|
Panel Dimensions
|
500*500*72 mm / 19.69*19.69*2.83 inch
|
|
Max Power Consumption
|
200 W/Panel
|
|
Color Processing
|
16 bit
|
|
Viewing Angle(H/V)
|
140°/110°
|
|
Operating Temperature
|
-40~45°C
|
|
Input Voltage
|
AC 100~240V; 50/60Hz
|
|
Humidity
|
10~90%RH
|
|
Life Time
|
100,000 Hours
|
