Woven Wire Cloth
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Anping Tenglu Metal Wire Mesh Co.,LTD

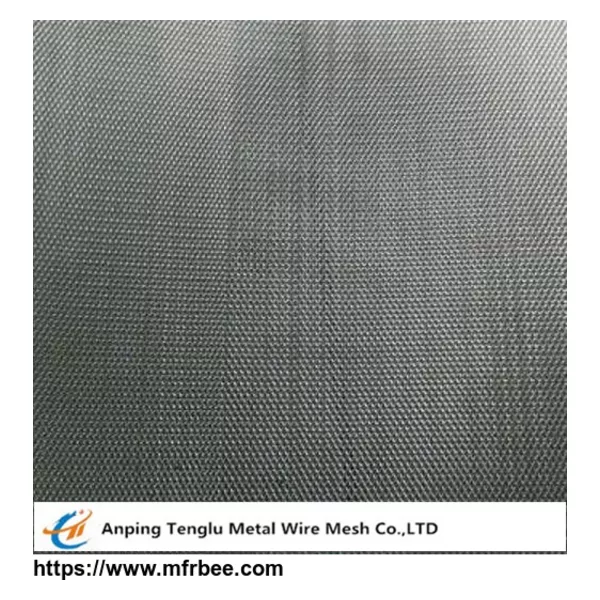

Woven Wire Cloth
•Product Description:
Woven Wire Cloth consists of wires crossing each other, thus forming the shape and size of the apertures. The transverse weft wires are woven into the longitudinal warp wires on looms similar to those used in the textile industry. The weaving reed controls the distances between the warp wires, the weft wires are determined by the pre-setting of the weaving machine. The cross over and under of each wire cause the wires to be crimped, resulting in a firm and stable interconnection of the mesh. The weft wires are also known as shute, shoot, cross or fill wires.
Weaving pattern or texture is the way in which the warp and weft wires are linked. Many weaving patterns are possible. For example:
1Plain weave is the most commonly used type of weaving. Each warp wire crosses alternately above and
below each weft wire. Warp and weft wires generally have the same diameter.
2Twill Weave allows a thicker wire and is suitable for heavy meshes. The wire position of twill weave wire mesh is less stable compared with plain weave.
3Dutch Plain Weave is similar to plain weave, while the warp wires are thicker and packed more closely together. This type of woven wire mesh is mainly used as industrial filter cloth.
4Dutch Twill Weave is a combination of Dutch Weave and Twill Weave. It is similar to twill weave, but the warp wires are thicker and packed more closely together. This type enables a strong wire cloth with super
fine filtration. Ideal for fine filtration.
5Five Heddle Weave has a smooth top surface and an open lower surface. It is ideal to withstand high mechanical strain and excellent filter performance.
6Reverse or Reinforced Dutch Weave is the same as Dutch weave except the warp and weft wires are reversed. The weft wires are thicker than the warp wires.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Americas,Asia,Europe,Middle East
- Founded Year:2014
- Address:
- Contact:Emily liu
