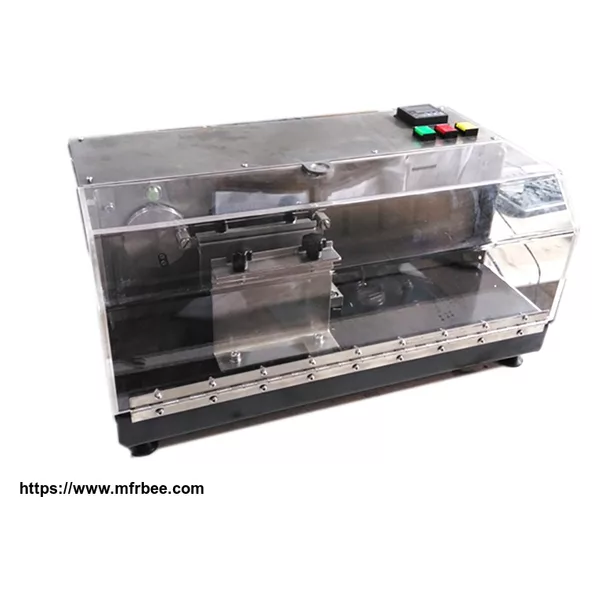

Drill Flocking Performance Tester
Product sourcing details
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- Packed by solid wooden case;
- Delivery
- 15 Days
Specifications
Fabric Drill Flocking Performance Tester (Friction Method)
Testing Standards:
GB/T 12705.1/14272, BS EN 12132-1
Applications:
Drill Flocking Performance Tester is designed for determining the down-proof properties of fabric for the liner material, feather or fibers of winter clothes, down jacket, quilts and other
bedding.
Product Information:
The Drill Flocking Performance Tester could test down and/or feather penetration through the primary tick fabric of a specimen containing feather and/or down filling, mainly for the liner
material, feather or fibers of winter clothes, down jacket, quilts and other bedding. Controlled by microprocessor, automatically alarm and stop as the test finished. With LED liquid crystal
display counter, a level calibration system to ensure the equipment running aclinicly.Transparent safety hood for safe operation and for convenient observation in real time.
Features:
· Main machine is made of stainless steel
· Surface is wiredrawing processed.
· Specimen clamp adopts stainless steel
· With high quality footing.
· Activity guild rod is processed by special aluminum.
· Rubbing time digital set, control accurate and stable.
· Motion mode by motor and speed controller ( 3 dimension movement) , can achieve specimen clamp moving and counting separately
· Precision gear motor driven, lower noise.
· With chain transparent plexiglass safety cover to ensure safety.
Technical Parameters:
Product Display:
Recommended Instruments:
Drill Flocking Performance Tester (Tumbling Method)
Drill Flocking Performance Tester (Impact Method)
Features:
· Main machine is made of stainless steel
· Surface is wiredrawing processed.
· Specimen clamp adopts stainless steel
· With high quality footing.
· Activity guild rod is processed by special aluminum.
· Rubbing time digital set, control accurate and stable.
· Motion mode by motor and speed controller ( 3 dimension movement) , can achieve specimen clamp moving and counting separately
· Precision gear motor driven, lower noise.
· With chain transparent plexiglass safety cover to ensure safety.
Technical Parameters:
| Item | Parameter |
| Distance between 2 clamps | 44±1mm |
| Distance of reel center with clamping point | 25±0.5 mm |
| Specimen size | 170×120 mm |
| Rotary speed | 135 rpm |
| Testing times | 2700 times |
| Counter | 0～999999 |
| Overall dimensions | 72×49×62cm（L×W×H） |
| Weight | 80kg |
| Power | 220V，50Hz，3A |
Product Display:
Recommended Instruments:
Drill Flocking Performance Tester (Impact Method)
