Stainless Steel Stair Railing Mesh

Product sourcing details

Place of Origin
China (Mainland)
Packaging
Inside Waterproof-paper and wooden case outside

Supplier: Anping Qingfa Wire Mesh Co., Ltd

Purchasing information

Minimum order
1
Lead time
15 Days

Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.

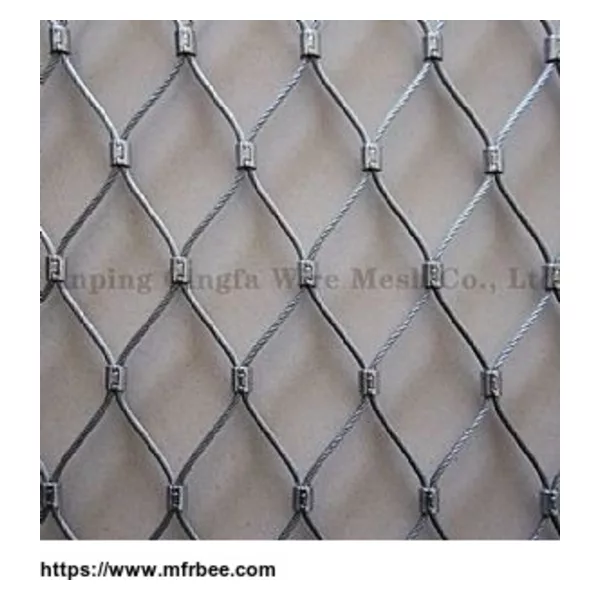

Stainless Steel Stair Railing Mesh

Details:

Stainless steel wire cable mesh is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of the mesh can even stand up to heavy loads.

The stainless steel wire cable mesh was developed in 1990 by our technology team. The design succeeded in achieving a structural element which is simultaneously securing as well as a design element. The application areas are accordingly versatile: the mesh is used as transparent barriers in zoo facilities and building constructions. They impress with their decorative design as railing filling or free-standing elements. On building walls and facades they are ideal vertical plant training aids and can be used for green wall systems.

Stainless steel mesh is manufactured specific to order. The product always does justice to the individual requirements. In cross direction, the individual mesh widths can be joined to each other in unlimited ways, without impairing the stability of the mesh.

The stainless steel mesh is manufactured in the standard diameters 1mm, 1.6mm, 2mm,2.4mm, 3mm,3.2mm and 4 mm. Mesh aperture of 25mm to 200mm are possible depending on cable diameter. It is manufactured from high-grade stainless steel cables of material class AISI304 or AISI316

We will gladly support you in your project planning. We advise on the static’s of demanding concepts and take over the assembly of the stainless steel mesh.

Flexible stainless steel cable mesh FERRULE TYPE (Stainless grade304)
NO.SCable diameterMesh Opening SizeNominal Break
InchmmInchmmLbs.
GT-32102F1/83.24×7102×1761600
GT-3276F1/83.23×576×1311600
GT-3251F1/83.22×3.551×871600
GT-24102F3/322.44×7102×176920
GT-2476F3/322.43×576×131920
GT-2451F3/322.42×3.551×87920
GT-2076F5/642.03×576×131676
GT-2051F5/642.02×3.551×87676
GT-2038F5/642.01.5×2.538×66676
GT-1676F1/161.63×576×131480
GT-1651F1/161.62×3.551×87480
GT-1638F1/161.61.5×2.538×66480
GT-1625F1/161.61×1.725.4×44480
GT-1251F3/641.22×3.551×87270
GT-1238F3/641.21.5×2.538×66270
GT-1225F3/641.21×1.725.4×44270



Remark:

1. Our Stainless steel Ferrule type Mesh open size can be made to any size from 2\" x 3.5\" to any size, such as 2.01\" x 3.51\", 2.02\" x 3.52\", 2.03\" x 3.53\"....to any (5\", 8\"...).

2. The mesh aperture angle according 60°design for my client, if you have any questions, please let me know in freely time.
