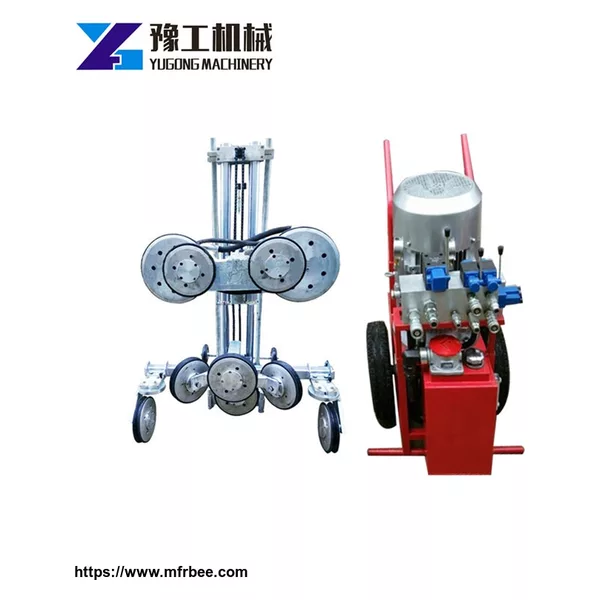

Hydraulic Diamond Wire Saw Machine
Product Quick Detail
- Main Motor Flow
- 40-100L/min
- FOB Price
- USD $11,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Application
- Guanite, marble, stone, concrete cutting
- Min Output Power
- 33 HP
- Max Wire Length
- 18 m
- Weight Of Pump
- 98 kg
- Output Power
- 25kw
- Minimum Order
- 1
- Product Name
- Hydraulic Diamond Wire Saw Machine
- Voltage
- 380V three-phase 50Hz
- Shaft Output Speed
- 1300r/min
- Weight Of Cutting Machine
- 78 kg
- Packaging
- Wooden cases
- Delivery
- 3-5 working days after payment
Specifications
Hydraulic Diamond Wire Saw Machine
Product Introduction
Diamond Wire Saw Machine is a cutting and removing device for thick concrete, irregular concrete and so on.
Parameters
| Hydraulic Wire Saw Machine | Hydraulic Pump | ||
| Wire Driving Type | Hydraulic | Output Power | 25 KW |
| Motor | YG-WS | Voltage | 380V three-phase 50 HZ |
| Min Output Power | 33 HP | Pump Type | Gear pump |
| Shaft Output Speed | 1300r/min | Main Motor Flow | 40-100 L/MIN |
| Max Wire Length | 18 m | Pressure | 15-20 Mpa |
| Unit Weight of Cutting Machine | 64 kg | Fuel Tank Capacity | 17 L |
| Main Motor Weight | 14 kg | Weight | 98 kg |
| Total Weight | 78 kg | Dimention | 650*550*1150 mm |
| Diamond Wire | |
| Diameter | 11.5 mm |
| Specification | 40 rings/m |
| Length | 50 m/set |
| Weight | 20 kg/set |
Application
•Concrete •ReinforcedConcrete •Wall •Bridge
•Pillar •Floor •Stoneetc.
Product Display
Hydraulic Diamond Wire Saw Machine has the cutting depth that wall saw can not get. Cutting operation depth is not restricted.
Wire Saw Machine is a leading advanced cutting construction equipment, which is widely used in the construction of buildings, bridges, tunnels and so on.
