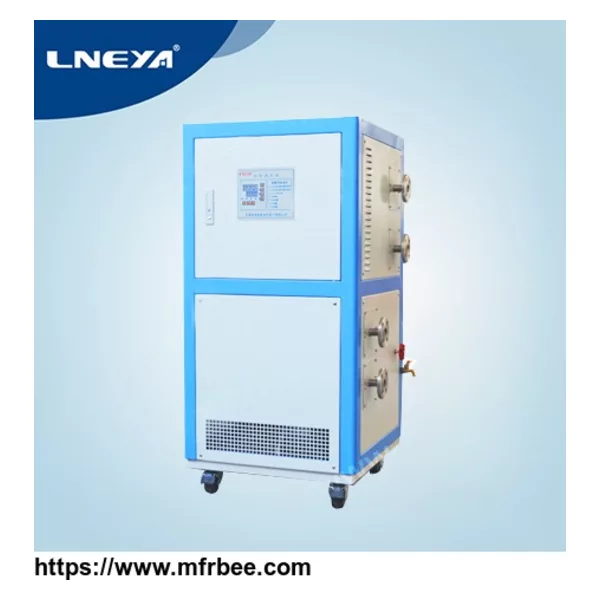

Heated Water Circulator

Heated Water Circulator
Equipped with heating cooling container, with large heat transfer area, fast heat-up and cool-down, small heat transfer oil demand.
Can heat-up and cool-down continuously.
The whole cycle is full closed,there is no oil mist at high temperature, heat transfer oil can not be oxidized and browning.
With function of internal PT100 for correcting internal circulation.
The whole system is closed with expansion tank, the expansion tank and liquid circulation are thermal insulation, do not participate in liquid circulation, regardless of high or low temperature, the medium in expansion tank is limited to 60℃..

50℃～200℃

Model	LY-5020	LY-A020
Temperature range ℃	50℃~200℃	50℃~200℃
Controller	PID adaptive controller
Temp. Control optional	Heat-conducting medium outlet temp. control
Communication protocol	MODBUS RTU Protocol, RS 485 Interface
Temperature feedback	Heat-conducting medium temperature feedback PT100
Temp. accuracy	±0.5℃	±0.5℃
Heating power	5.5kW	10kW
Cooling capacity	300℃
200℃
100℃
65℃

Circulation pump	Max10L/min 0.7BAR	Max35L/min 2BAR
Heater	Orient electric heater
Independent Temperature limiter	LNEYA
Cooler
Operation panel	Display setting temperature and testing temperature; Touch screen display
Safety protection	Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device,liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system	The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
Connection size	DN20	DN20
Dimension	4006001050	4006001050
Weight	70kg	80kg
Power	AC 380V 50HZ 5.9kW (max)	AC 380V 50HZ 10.8kW (max)
Case material	Cold rolled steel
Optional	Optional 7-inch color touch screen controller, temperature curve record, data export to excel format.
Optional	SUS304 case material
Optional power	220V 60HZ three-phase, 440V~480V 60HZ three-phase
